H679V,BK

Active

Serpac

BOX ABS BLACK 4.94"L X 2.75"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS BLACK 4.94"L X 2.75"W

Technical Specifications

Parameters and characteristics for this part

Specification	H679V,BK

Area (L x W)	13.6 in˛
Area (L x W)	88 cm²
Color	Black
Container Type	Box
Features	Battery Compartment, PCB Supports
Features	9 V
Height [z]	1.28 in
Height [z]	32.51 mm
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40
Size / Dimension [x]	125.48 mm, 4.94 "
Size / Dimension [y]	69.85 mm
Thickness	2.03 mm
Thickness	0.08 "
Weight	58.97 g
Weight	0.13 lbs

Part	Material	Area (L x W)	Area (L x W)	Features	Features	Size / Dimension [y]	Size / Dimension [x]	Ratings	Color	Height [z]	Height [z]	Container Type	Material Flammability Rating	Thickness	Thickness	Weight	Weight
Serpac H679V,BK	Plastic ABS	13.6 in˛	88 cm²	Battery Compartment PCB Supports	9 V	69.85 mm	4.94 " 125.48 mm	IP40	Black	1.28 in	32.51 mm	Box	UL94 HB	2.03 mm	0.08 "	58.97 g	0.13 lbs
Serpac H679V,GY	Plastic ABS	13.6 in˛	88 cm²	Battery Compartment PCB Supports	9 V	69.85 mm	4.94 " 125.48 mm	IP40	Gray	1.28 in	32.51 mm	Box	UL94 HB	2.03 mm	0.08 "	58.97 g	0.13 lbs
Serpac H679V,AL	Plastic ABS	13.6 in˛	88 cm²	Battery Compartment PCB Supports	9 V	69.85 mm	4.94 " 125.48 mm	IP40	Almond	1.28 in	32.51 mm	Box	UL94 HB	2.03 mm	0.08 "	58.97 g	0.13 lbs

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

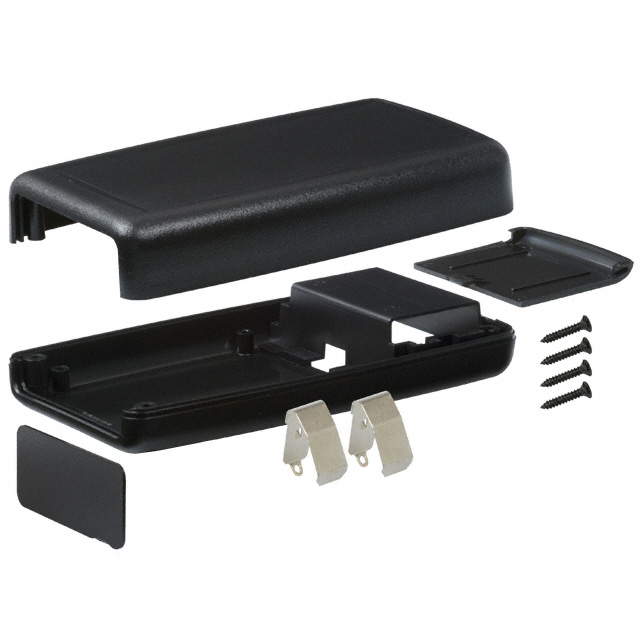

Box Plastic, ABS Black Hand Held, Split Sides and End Panel(s) 4.940" L x 2.750" W (125.48mm x 69.85mm) X 1.280" (32.51mm)

Technical documentation and resources

No documents available
