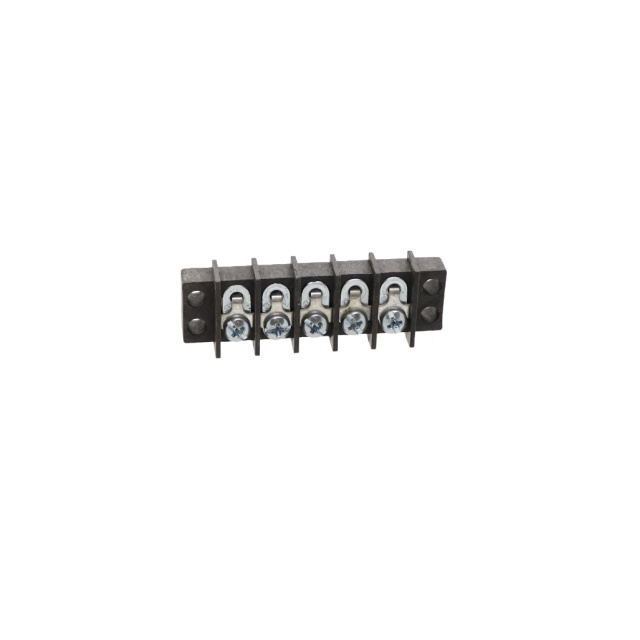

1505-Y

Active

Curtis Industries

CONN BARRIER STRIP 5CIRC 0.375"

Search across all available documentation for this part.

Active

Curtis Industries

CONN BARRIER STRIP 5CIRC 0.375"

Technical Specifications

Parameters and characteristics for this part

Specification	1505-Y

Barrier Type	2 Wall (Dual)
Bottom Termination	PC Pin
Current Rating (Amps)	20 A
Features	Flange
Material - Insulation	Polyphenylene Oxide (PPO)
Material Flammability Rating	UL94 V-0
Mounting Type	Chassis, Panel, Through Hole
Number of Circuits	5
Number of Rows	2
Number of Wire Entries	10
Operating Temperature	110 °C
Pitch [x]	9.53 mm
Pitch [x]	0.375 in
Terminal Block Type	Barrier Block
Terminal Screw Material	Steel
Top Termination	Screws
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	10 AWG

Part	Material Flammability Rating	Terminal Screw Finish	Features	Pitch [x]	Pitch [x]	Operating Temperature	Wire Gauge [Max]	Wire Gauge [Min]	Current Rating (Amps)	Number of Circuits	Terminal Block Type	Number of Rows	Number of Wire Entries	Bottom Termination	Barrier Type	Material - Insulation	Top Termination	Mounting Type	Terminal Screw Material
Curtis Industries 1505-3/4ST	UL94 V-0	Tin	Flange	9.53 mm	0.375 in	110 °C	22 AWG	10 AWG	20 A	5	Barrier Block	2	10	Closed	2 Wall (Dual)	Polyphenylene Oxide (PPO)	Screws with Solder Lugs Single	Chassis Panel
Curtis Industries 1505-Y	UL94 V-0		Flange	9.53 mm	0.375 in	110 °C	22 AWG	10 AWG	20 A	5	Barrier Block	2	10	PC Pin	2 Wall (Dual)	Polyphenylene Oxide (PPO)	Screws	Chassis Panel Through Hole	Steel
Curtis Industries 1505-ST	UL94 V-0	Tin	Flange	9.53 mm	0.375 in	110 °C	22 AWG	10 AWG	20 A	5	Barrier Block	2	10	Closed	2 Wall (Dual)	Polyphenylene Oxide (PPO)	Screws with Solder Lugs Dual	Chassis Panel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Circuit 0.375" (9.53mm) Barrier Block Connector Screws
