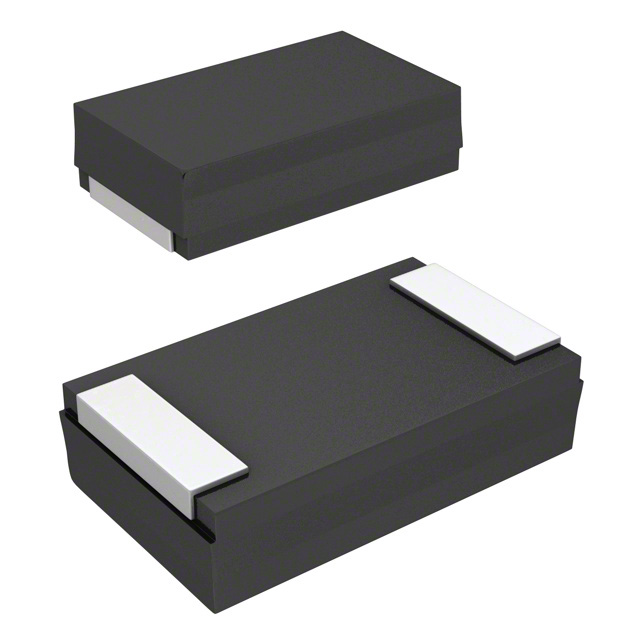

16TQC220MD3

Active

Panasonic Industrial Automation Sales

CAP, 220UF, 16V, TANT, POLYMER, CASE D3L ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

16TQC220MD3

Active

Panasonic Industrial Automation Sales

CAP, 220UF, 16V, TANT, POLYMER, CASE D3L ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	16TQC220MD3

Capacitance	220 µF
ESR (Equivalent Series Resistance)	50 mOhm
Features	General Purpose
Height - Seated (Max)	3 mm
Height - Seated (Max) [Max]	0.118 in
Lifetime @ Temp.	2000 Hrs
Manufacturer Size Code	D3L
Mounting Type	Surface Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	7343 Metric
Package / Case	2917
Size / Dimension [x]	0.287 "
Size / Dimension [x]	7.3 mm
Size / Dimension [y]	4.3 mm
Size / Dimension [y]	0.169 "
Tolerance	20 %
Type	Molded
Voltage - Rated	16 V

16TQC Series

Part	Tolerance	Voltage - Rated	Type	Capacitance	Manufacturer Size Code	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	ESR (Equivalent Series Resistance)	Features	Operating Temperature [Max]	Operating Temperature [Min]	Lifetime @ Temp.	Package / Case	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max)	Height - Seated (Max) [Max]	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Height - Seated (Max) [Max]
Panasonic Industrial Automation Sales 16TQC33MYFS	20 %	16 V	Molded	33 ÁF	D12	Surface Mount	0.049 "	1.25 mm	40 mOhm	General Purpose	105 ░C	-55 °C	2000 Hrs	7343 Metric	2917	4.3 mm	0.287 "	7.3 mm	0.169 "
Panasonic Industrial Automation Sales 16TQC220MD3	20 %	16 V	Molded	220 µF	D3L	Surface Mount			50 mOhm	General Purpose	105 ░C	-55 °C	2000 Hrs	7343 Metric	2917	4.3 mm	0.287 "	7.3 mm	0.169 "	3 mm	0.118 in
Panasonic Industrial Automation Sales 16TQC150MYF	20 %	16 V	Molded	150 µF	D3L	Surface Mount			50 mOhm	General Purpose	105 ░C	-55 °C	2000 Hrs	7343 Metric	2917	4.3 mm	0.287 "	7.3 mm	0.169 "	3 mm	0.118 in
Panasonic Industrial Automation Sales 16TQC68MYF	20 %	16 V	Molded	68 µF	D2	Surface Mount	0.079 in	2 mm	50 mOhm	General Purpose	105 ░C	-55 °C	2000 Hrs	7343 Metric	2917	4.3 mm	0.287 "	7.3 mm	0.169 "
Panasonic Industrial Automation Sales 16TQC33MYFB	20 %	16 V	Molded	33 ÁF	B2	Surface Mount	0.079 in	2 mm	90 mOhm	General Purpose	105 ░C	-55 °C	2000 Hrs	3528 Metric		2.8 mm		3.5 mm				1411	0.11 in	0.138 "
Panasonic Industrial Automation Sales 16TQC47MYFT	20 %	16 V	Molded	47 µF	D15	Surface Mount	0.059 "		55 mOhm	General Purpose	105 ░C	-55 °C	2000 Hrs	7343 Metric	2917	4.3 mm	0.287 "	7.3 mm	0.169 "						1.5 mm
Panasonic Industrial Automation Sales 16TQC10M	20 %	16 V	Molded	10 µF	B2	Surface Mount	0.083 "	2.1 mm	100 mOhm	General Purpose	105 ░C	-55 °C	2000 Hrs	3528 Metric		2.8 mm		3.5 mm				1411	0.11 in	0.138 "
Panasonic Industrial Automation Sales 16TQC22MYFB	20 %	16 V	Molded	22 µF	B2	Surface Mount	0.079 in	2 mm	90 mOhm	General Purpose	105 ░C	-55 °C	2000 Hrs	3528 Metric		2.8 mm		3.5 mm				1411	0.11 in	0.138 "
Panasonic Industrial Automation Sales 16TQC47MW	20 %	16 V	Molded	47 µF	D2	Surface Mount	0.079 in	2 mm	40 mOhm	General Purpose	105 ░C	-55 °C	2000 Hrs	7343 Metric	2917	4.3 mm	0.287 "	7.3 mm	0.169 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 3.00
		10	$ 2.31
		50	$ 2.12
		100	$ 1.76
		500	$ 1.41
		1000	$ 1.24
	Digi-Reel®	1	$ 3.00
		10	$ 2.31
		50	$ 2.12
		100	$ 1.76
		500	$ 1.41
		1000	$ 1.24
	Tape & Reel (TR)	2500	$ 1.19
		5000	$ 1.15
Newark	Each (Supplied on Cut Tape)	1	$ 3.01
		10	$ 2.16
		25	$ 1.95
		50	$ 1.74
		100	$ 1.57
		250	$ 1.46
		500	$ 1.30

Description

General part information

16TQC Series

CAP, 220UF, 16V, TANT, POLYMER, CASE D3L ROHS COMPLIANT: YES

Documents

Technical documentation and resources

Datasheet

Technical Data Sheet EN

Datasheet
