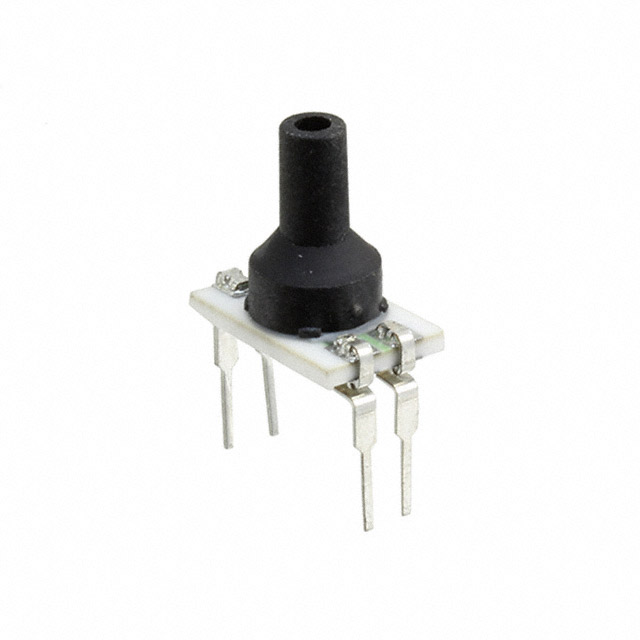

TBPDLNN005PGUCV

Obsolete

Honeywell Sensing and Productivity Solutions

SENSOR 5PSIG 0.13" .025V 4DIP

Search across all available documentation for this part.

Obsolete

Honeywell Sensing and Productivity Solutions

SENSOR 5PSIG 0.13" .025V 4DIP

Technical Specifications

Parameters and characteristics for this part

Part	Pressure Type	Mounting Type	Port Style	Port Size [x]	Port Size [x]	Accuracy	Output Type	Maximum Pressure [Max]	Maximum Pressure [Max]	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Package / Case	Package / Case	Package / Case	Output [Max]	Output [Min]	Output	Termination Style	Operating Pressure	Operating Pressure	Voltage - Supply [Max]	Voltage - Supply [Min]	Features
Honeywell Sensing and Productivity Solutions TBPDLNN005PGUCV	Vented Gauge	Through Hole	Barbless	0.13 "	3.18 mm	0.15 %	Wheatstone Bridge	30 PSI	206.84 kPa	Board Mount	125 °C	-40 °C	4-DIP	4-DIP Top Port	11.5 mm	0.453 in	25 mV	0 mV	5 V	PC Pin	34.47 kPa	5 PSI	12 V	1.5 V	Temperature Compensated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Pressure Sensor 5PSI (34.47kPa) Vented Gauge Male - 0.13" (3.18mm) Tube 0 mV ~ 25 mV (5V) 4-DIP (0.453", 11.50mm), Top Port

Technical documentation and resources
