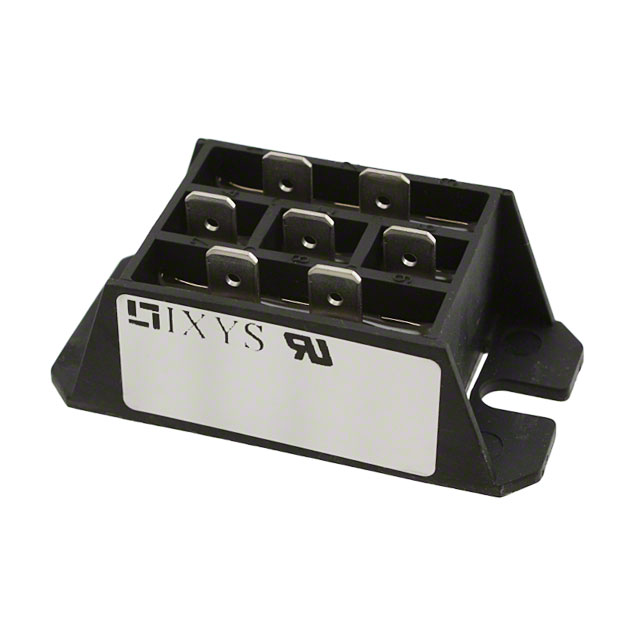

VUO50-08NO3

Obsolete

IXYS

BRIDGE RECT 3P 800V 58A FO-F-B

Search across all available documentation for this part.

Obsolete

IXYS

BRIDGE RECT 3P 800V 58A FO-F-B

Technical Specifications

Parameters and characteristics for this part

Specification	VUO50-08NO3

Current - Average Rectified (Io)	58 A
Current - Reverse Leakage @ Vr	300 µA
Diode Type	Three Phase
Mounting Type	Chassis Mount
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	FO-F-B
Supplier Device Package	FO-F-B
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.9 V
Voltage - Peak Reverse (Max) [Max]	800 V

Part	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Technology	Package / Case	Current - Reverse Leakage @ Vr	Diode Type	Voltage - Peak Reverse (Max) [Max]	Current - Average Rectified (Io)	Supplier Device Package	Voltage - Forward (Vf) (Max) @ If	Voltage - Peak Reverse (Max)
IXYS VUO50-18NO3	Chassis Mount	-40 °C	125 ¯C	Standard	FO-F-B	300 µA	Three Phase	1.8 kV	58 A	FO-F-B	1.9 V
IXYS VUO50-08NO3	Chassis Mount	-40 °C	125 ¯C	Standard	FO-F-B	300 µA	Three Phase	800 V	58 A	FO-F-B	1.9 V
IXYS VUO50-16NO3	Chassis Mount	-40 °C	125 ¯C	Standard	FO-F-B	300 µA	Three Phase		58 A	FO-F-B	1.9 V	1.6 kV

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bridge Rectifier Three Phase Standard 800 V Chassis Mount FO-F-B
