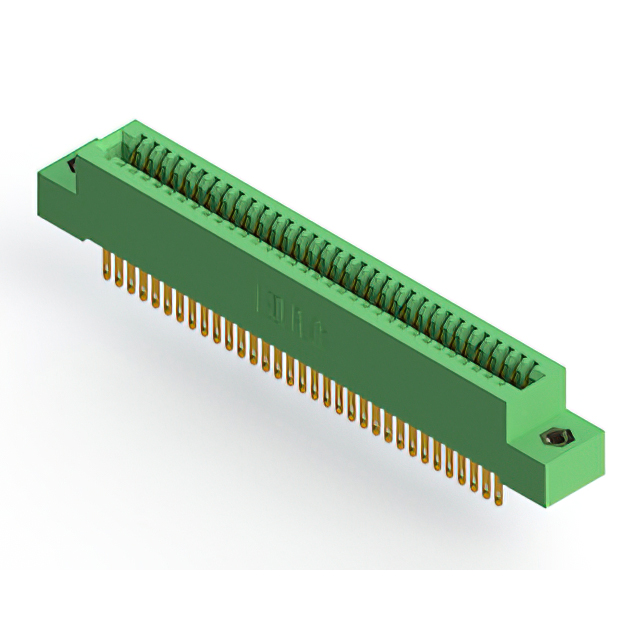

CARD EDGE CONNECTOR, DUAL SIDE, 3.18 MM, 66 CONTACTS, PANEL MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
325-066-500-208
ActiveEDAC Inc.
CARD EDGE CONNECTOR, DUAL SIDE, 3.18 MM, 66 CONTACTS, PANEL MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 325-066-500-208 |
|---|---|
| Card Thickness | 3.18 mm |
| Card Thickness | 0.125 in |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 66 |
| Number of Positions/Bay/Row [custom] | 33 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -65 ░C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder Eyelet(s) |
| Termination Rows | 2 |
325-066 Series
| Part | Material - Insulation | Number of Positions | Termination | Card Type | Color | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Card Thickness | Card Thickness | Gender | Contact Finish | Mounting Type | Number of Positions/Bay/Row [custom] | Read Out | Termination Rows | Pitch [x] | Pitch [x] | Number of Rows | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Diallyl Phthalate (DAP) | 66 | Wire Wrap | Non Specified - Dual Edge | Green | Cantilever | 10 Áin | 0.25 Ám | 3.18 mm | 0.125 in | Female | Gold | Through Hole | 33 | Dual | 2 | 2.54 mm | 0.1 in | 2 | Copper Alloy | 125 °C | -65 ░C | |||
EDAC Inc. | Diallyl Phthalate (DAP) | 66 | Solder Eyelet(s) | Non Specified - Dual Edge | Green | Cantilever | 10 Áin | 0.25 Ám | 3.18 mm | 0.125 in | Female | Gold | Through Hole | 33 | Dual | 2 | 2.54 mm | 0.1 in | 2 | Copper Alloy | 125 °C | -65 ░C | 4-40 Flush Mount Threaded Insert Top Opening | ||
EDAC Inc. | Diallyl Phthalate (DAP) | 66 | Solder Eyelet(s) | Non Specified - Dual Edge | Green | Cantilever | 10 Áin | 0.25 Ám | 3.18 mm | 0.125 in | Female | Gold | Through Hole | 33 | Dual | 2 | 2.54 mm | 0.1 in | 2 | Copper Alloy | 125 °C | -65 ░C | Flush Mount M3 Threaded Insert Top Opening | ||
EDAC Inc. | Diallyl Phthalate (DAP) | 66 | Wire Wrap | Non Specified - Dual Edge | Green | Cantilever | 10 Áin | 0.25 Ám | 3.18 mm | 0.125 in | Female | Gold | Through Hole | 33 | Dual | 2 | 2.54 mm | 0.1 in | 2 | Copper Alloy | 125 °C | -65 ░C | Flush Mount Top Opening Unthreaded | 0.16 in | 4.06 mm |
EDAC Inc. | Diallyl Phthalate (DAP) | 66 | Wire Wrap | Non Specified - Dual Edge | Green | Cantilever | 10 Áin | 0.25 Ám | 3.18 mm | 0.125 in | Female | Gold | Through Hole | 33 | Dual | 2 | 2.54 mm | 0.1 in | 2 | Copper Alloy | 125 °C | -65 ░C | 4-40 Flush Mount Threaded Insert Top Opening | ||
EDAC Inc. | Diallyl Phthalate (DAP) | 66 | Solder | Non Specified - Dual Edge | Green | Cantilever | 10 Áin | 0.25 Ám | 3.18 mm | 0.125 in | Female | Gold | Through Hole | 33 | Dual | 2 | 2.54 mm | 0.1 in | 2 | Copper Alloy | 125 °C | -65 ░C | Flush Mount M3 Threaded Insert Top Opening |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
325-066 Series
66 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
