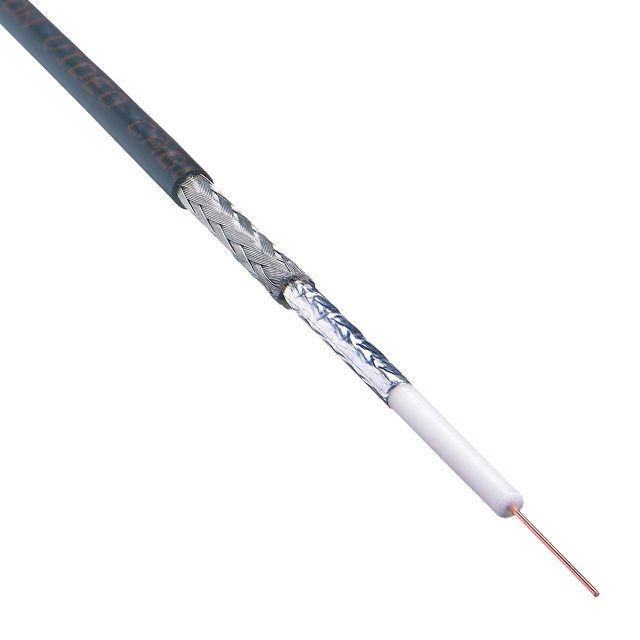

1855A 0101000

Active

Belden Inc.

CABLE COAX 23 AWG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1855A 0101000

Active

Belden Inc.

CABLE COAX 23 AWG

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1855A 0101000

Cable Type	Coaxial
Conductor Material	Copper, Bare
Conductor Strand	Solid
Dielectric Diameter [diameter]	0.102 in
Dielectric Diameter [diameter]	2.59 mm
Impedance	75 Ohms
Jacket (Insulation) Diameter [diameter]	4.04 mm
Jacket (Insulation) Diameter [diameter]	0.159 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Length	304.8 m
Length	1000 ft
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-30 ░C
Shield Coverage	95 %, 100 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
VoP, Velocity of Propagation	82
Wire Gauge	23 AWG

1855A Series

Part	Cable Group	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Material	Conductor Strand	Wire Gauge	Features	Jacket (Insulation) Material	Shield Coverage	Shield Type	Cable Type	Length	Length	VoP, Velocity of Propagation	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Usage	Jacket Color	Shield Material	Impedance
Belden Inc. 1855A N3UN1000	RG-59 Mini	4.04 mm	0.159 in	-30 ░C	75 ░C	Copper Bare	Solid	23 AWG	UV Resistant	Poly-Vinyl Chloride (PVC)	95 % 100 %	Braid Foil	Coaxial	304.8 m	1000 ft	82	0.102 in	2.59 mm	Video	Green	Aluminum Polyester Copper Tinned
Belden Inc. 1855A 007N1000	RG-59 Mini	4.04 mm	0.159 in	-30 ░C	75 ░C	Copper Bare	Solid	23 AWG	UV Resistant	Poly-Vinyl Chloride (PVC)	95 % 100 %	Braid Foil	Coaxial	304.8 m	1000 ft	82	0.102 in	2.59 mm	Video	Violet	Aluminum Polyester Copper Tinned
Belden Inc. 1855A 008N1000	RG-59 Mini	4.04 mm	0.159 in	-30 ░C	75 ░C	Copper Bare	Solid	23 AWG	UV Resistant	Poly-Vinyl Chloride (PVC)	95 % 100 %	Braid Foil	Coaxial	304.8 m	1000 ft	82	0.102 in	2.59 mm	Video	Gray	Aluminum Polyester Copper Tinned
Belden Inc. 1855A 009N1000	RG-59 Mini	4.04 mm	0.159 in	-30 ░C	75 ░C	Copper Bare	Solid	23 AWG	UV Resistant	Poly-Vinyl Chloride (PVC)	95 % 100 %	Braid Foil	Coaxial	304.8 m	1000 ft	82	0.102 in	2.59 mm	Video		Aluminum Polyester Copper Tinned
Belden Inc. 1855A 0021000	RG-59 Mini	4.04 mm	0.159 in	-30 ░C	75 ░C	Copper Bare	Solid	23 AWG	UV Resistant	Poly-Vinyl Chloride (PVC)	95 % 100 %	Braid Foil	Coaxial	304.8 m	1000 ft	82	0.102 in	2.59 mm	Video	Red	Aluminum Polyester Copper Tinned
Belden Inc. 1855A 0101000		4.04 mm	0.159 in	-30 ░C	75 ░C	Copper Bare	Solid	23 AWG		Poly-Vinyl Chloride (PVC)	95 % 100 %	Braid Foil	Coaxial	304.8 m	1000 ft	82	0.102 in	2.59 mm		Black	Aluminum Copper Tinned	75 Ohms
Belden Inc. 1855A 003N1000	RG-59 Mini	4.04 mm	0.159 in	-30 ░C	75 ░C	Copper Bare	Solid	23 AWG	UV Resistant	Poly-Vinyl Chloride (PVC)	95 % 100 %	Braid Foil	Coaxial	304.8 m	1000 ft	82	0.102 in	2.59 mm	Video	Orange	Aluminum Polyester Copper Tinned
Belden Inc. 1855A 010N1000	RG-59 Mini	4.04 mm	0.159 in	-30 ░C	75 ░C	Copper Bare	Solid	23 AWG	UV Resistant	Poly-Vinyl Chloride (PVC)	95 % 100 %	Braid Foil	Coaxial	304.8 m	1000 ft	82	0.102 in	2.59 mm	Video	Black	Aluminum Polyester Copper Tinned
Belden Inc. 1855A 001N1000	RG-59 Mini	4.04 mm	0.159 in	-30 ░C	75 ░C	Copper Bare	Solid	23 AWG	UV Resistant	Poly-Vinyl Chloride (PVC)	95 % 100 %	Braid Foil	Coaxial	304.8 m	1000 ft	82	0.102 in	2.59 mm	Video	Brown	Aluminum Polyester Copper Tinned
Belden Inc. 1855A 0031000	RG-59 Mini	4.04 mm	0.159 in	-30 ░C	75 ░C	Copper Bare	Solid	23 AWG	UV Resistant	Poly-Vinyl Chloride (PVC)	95 % 100 %	Braid Foil	Coaxial	304.8 m	1000 ft	82	0.102 in	2.59 mm	Video	Orange	Aluminum Polyester Copper Tinned

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 0.97
		2000	$ 0.92
		3000	$ 0.89
		5000	$ 0.86
		7000	$ 0.84
		10000	$ 0.82

Description

General part information

1855A Series

Coaxial Cable 23 AWG 1000.0' (304.80m) 75 Ohms
