2SA1709S-AN

Active

Sanyo

TRANS PNP 100V 2A 3NMP

Search across all available documentation for this part.

Active

Sanyo

TRANS PNP 100V 2A 3NMP

Technical Specifications

Parameters and characteristics for this part

Specification	2SA1709S-AN

Current - Collector (Ic) (Max) [Max]	2 A
Current - Collector Cutoff (Max) [Max]	100 nA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	100 hFE
Frequency - Transition	120 MHz
Mounting Type	Through Hole
Operating Temperature	150 °C

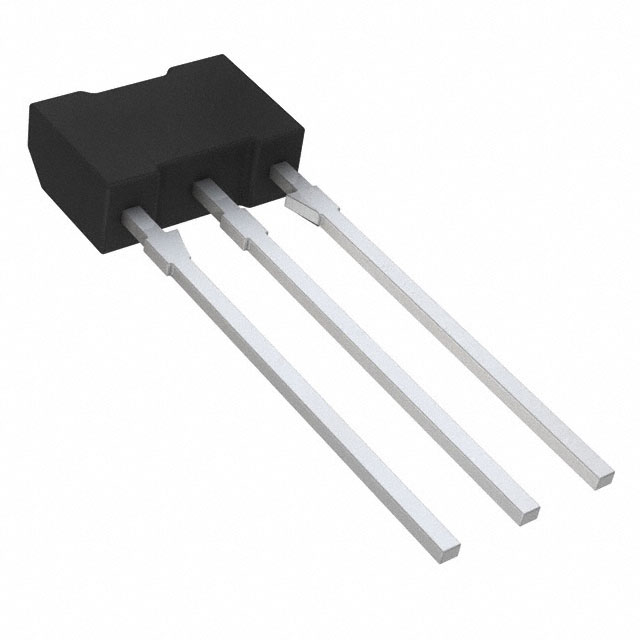

Package / Case	SC-71
Power - Max [Max]	1 W
Supplier Device Package	3-NMP
Transistor Type	PNP
Vce Saturation (Max) @ Ib, Ic	600 mV
Voltage - Collector Emitter Breakdown (Max) [Max]	100 V

Part	Current - Collector Cutoff (Max) [Max]	Supplier Device Package	Current - Collector (Ic) (Max) [Max]	Power - Max [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Package / Case	Mounting Type	Frequency - Transition	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Vce Saturation (Max) @ Ib, Ic	Operating Temperature	Transistor Type
Sanyo 2SA1709S-AN	100 nA	3-NMP	2 A	1 W	100 V	SC-71	Through Hole	120 MHz	100 hFE	600 mV	150 °C	PNP

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1567	$ 0.19

General part information

Bipolar (BJT) Transistor PNP 100 V 2 A 120MHz 1 W Through Hole 3-NMP

Technical documentation and resources

No documents available
