Q8F3CZZRYG24E
ActiveAPEM

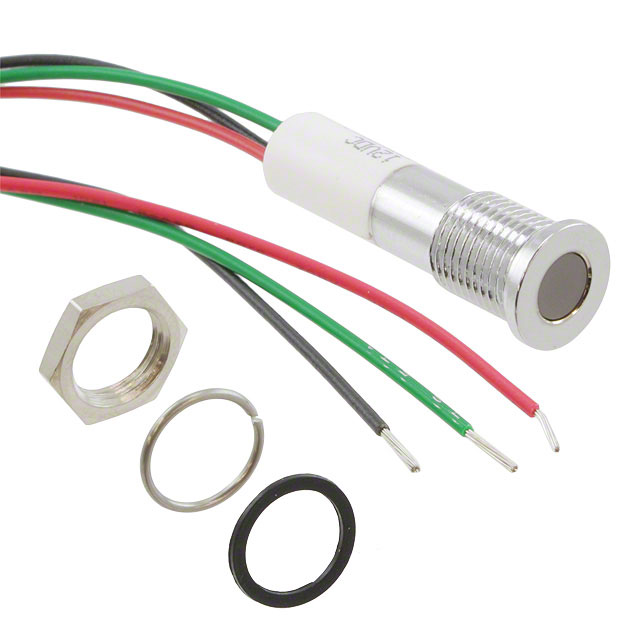

LED PM INDICATOR FLUSH GR/RD/YLW
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
Q8F3CZZRYG24E
ActiveAPEM
LED PM INDICATOR FLUSH GR/RD/YLW
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | Q8F3CZZRYG24E |
|---|---|
| Current | 20mA Green, 20mA Yellow, 20mA Red |
| Ingress Protection | IP67 |
| Lamp Color | Green, Yellow, Red |
| Lens Size | T-1 3/4 |
| Lens Size | 5 mm |
| Lens Transparency | Diffused |
| Millicandela Rating [custom] | 10 mcd |
| Millicandela Rating [custom] | 15 mcd |
| Millicandela Rating [custom] | 6 mcd |
| Panel Cutout Dimensions [custom] | 0.31 in |
| Panel Cutout Dimensions [custom] | 7.87 mm |
| Panel Cutout Shape | Round |
| Ratings | DC |
| Termination Style | Wire Leads - 7.87" (200.00mm) |
| Type | LED |
| Viewing Angle | 100 ° |
| Voltage | 24V Yellow, 24V Green, 24V Red |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 20.80 | |
| 25 | $ 15.37 | |||
| 100 | $ 14.04 | |||
| 500 | $ 12.96 | |||
Description
General part information
Q8F3CZZRYG Series
LED Panel Indicator Green, Red, Yellow Diffused 100° 24V Green, 24V Red, 24V Yellow 20mA Green, 20mA Red, 20mA Yellow Wire Leads - 7.87" (200.00mm)
