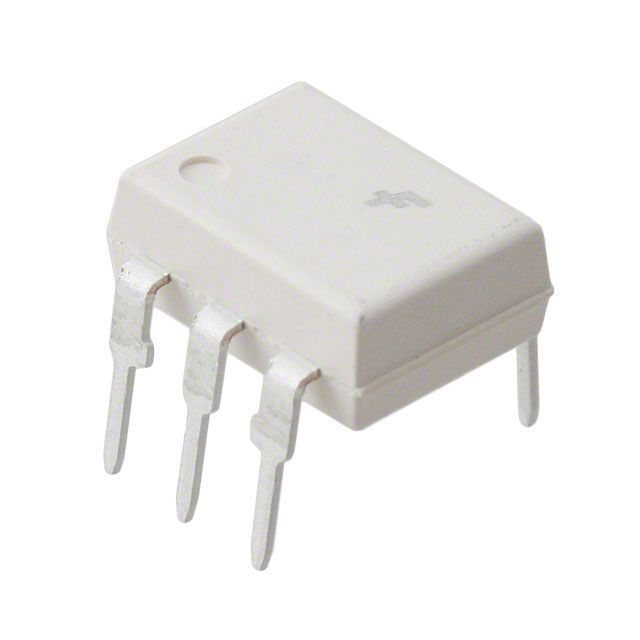

TIL111VM

Active

ON Semiconductor

6-PIN DIP PHOTOTRANSISTOR OUTPUT OPTOCOUPLER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsPackage Drawing-646BX-PDIP6 8.51x6.35, 2.54P Datasheet +1

TIL111VM

Active

ON Semiconductor

6-PIN DIP PHOTOTRANSISTOR OUTPUT OPTOCOUPLER

Deep-Dive with AI

DocumentsPackage Drawing-646BX-PDIP6 8.51x6.35, 2.54P Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TIL111VM

Current - DC Forward (If) (Max) [Max]	60 mA
Current - Output / Channel	2 mA
Input Type	DC
Mounting Type	Through Hole
Number of Channels	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Package / Case	6-DIP
Package / Case	0.3 in
Package / Case	7.62 mm
Rise / Fall Time (Typ)	10 µs
Rise / Fall Time (Typ) [Max]	10 µs
Supplier Device Package	6-DIP
Vce Saturation (Max) [Max]	400 mV
Voltage - Isolation	7500 Vpk
Voltage - Output (Max) [Max]	30 V

TIL111M Series

6-Pin DIP Phototransistor Output Optocoupler

Part	Package / Case	Package / Case	Package / Case	Input Type	Rise / Fall Time (Typ) [Max]	Rise / Fall Time (Typ)	Current - DC Forward (If) (Max) [Max]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output / Channel	Number of Channels	Supplier Device Package	Voltage - Output (Max) [Max]	Voltage - Isolation	Vce Saturation (Max) [Max]	Package / Case
ON Semiconductor TIL111VM	6-DIP	0.3 in	7.62 mm	DC	10 µs	10 µs	60 mA	Through Hole	100 °C	-40 °C	2 mA	1	6-DIP	30 V	7500 Vpk	400 mV
ON Semiconductor TIL111300	6-DIP	0.3 in	7.62 mm	DC	10 µs	10 µs	100 mA	Through Hole	100 °C	-55 °C	2 mA	1	6-DIP	30 V	5300 Vrms	400 mV
ON Semiconductor TIL111SR2M	6-SMD Gull Wing			DC	10 µs	10 µs	60 mA	Surface Mount	100 °C	-40 °C	2 mA	1	6-SMD	30 V	7500 Vpk	400 mV
ON Semiconductor TIL111300W	6-DIP		10.16 mm	DC	10 µs	10 µs	100 mA	Through Hole	100 °C	-55 °C	2 mA	1	6-DIP	30 V	5300 Vrms	400 mV	10.16 mm
ON Semiconductor TIL111SM	6-SMD Gull Wing			DC	10 µs	10 µs	60 mA	Surface Mount	100 °C	-40 °C	2 mA	1	6-SMD	30 V	7500 Vpk	400 mV
ON Semiconductor TIL111W	6-DIP		10.16 mm	DC			100 mA	Through Hole	100 °C	-55 °C	2 mA	1	6-DIP	30 V	5300 Vrms	400 mV	10.16 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.92
		10	$ 0.60
		100	$ 0.39
		500	$ 0.36
		1000	$ 0.31
		2000	$ 0.29
		5000	$ 0.28
		10000	$ 0.28
		25000	$ 0.27
ON Semiconductor	N/A	1	$ 0.27

Description

General part information

TIL111M Series

The MOC8100, TIL111 and TIL117 optocouplers consist of a gallium arsenide infrared emitting diode driving a silicon phototransistor in a 6-pin dual in-line package.
