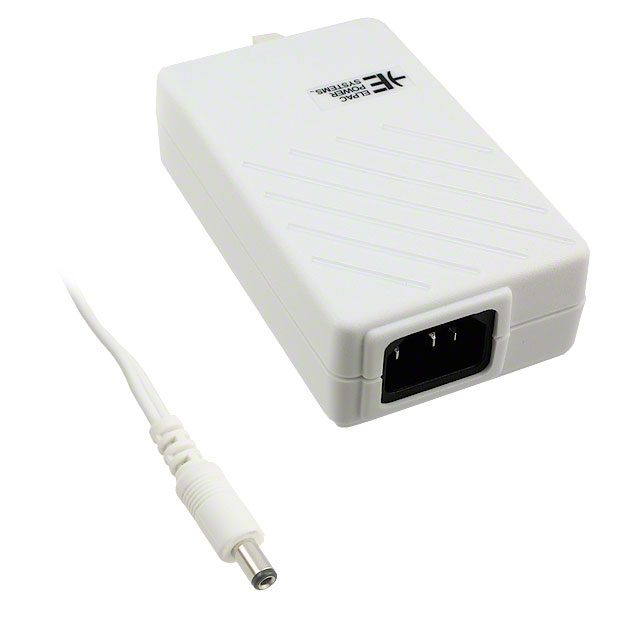

MW2424-760-NC-WH
ObsoleteInventus Power
AC/DC DESKTOP ADAPTER 24V 24W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MW2424-760-NC-WH
ObsoleteInventus Power
AC/DC DESKTOP ADAPTER 24V 24W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MW2424-760-NC-WH |
|---|---|
| Applications | Medical |
| Approval Agency | CE, CB |
| Current - Output (Max) [Max] | 1 A |
| Efficiency | 80 % |
| Form | Desktop (Class I) |
| Input Connector | IEC 320-C14 |
| Input Type | Cord |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | 0 °C |
| Output Connector | Barrel Plug |
| Output Connector [diameter] | 5.5 mm, 2.5 mm |
| Output Connector [x] | 9.5 mm |
| Polarization | Positive Center |
| Power (Watts) | 24 W |
| Region Utilized | International |
| Size / Dimension [x] | 108 mm |
| Size / Dimension [x] | 4.25 in |
| Size / Dimension [y] | 2.5 in |
| Size / Dimension [y] | 64.5 mm |
| Size / Dimension [z] | 1.3 " |
| Size / Dimension [z] | 33 mm |
| Voltage - Input [Max] | 240 VAC |
| Voltage - Input [Min] | 100 VAC |
| Voltage - Output | 24 V |
| Weight | 204.12 g |
| Weight | 0.45 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
MW2424 Series
24V 24 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
