APTD3216SF4C

Active

Kingbright

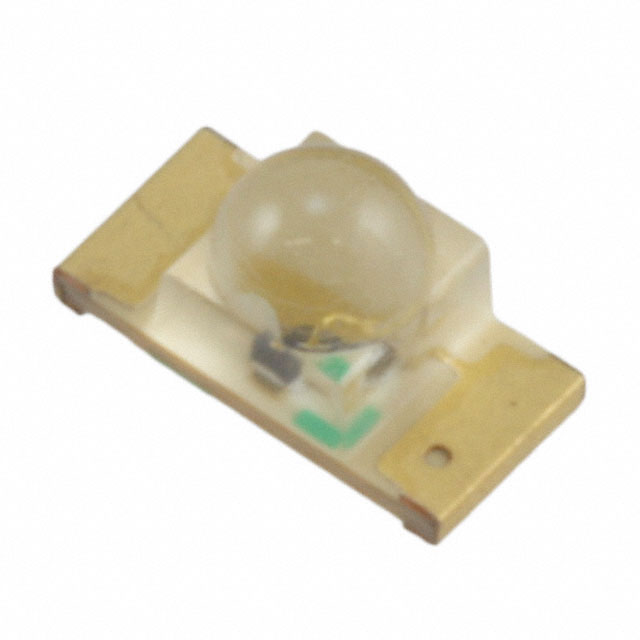

INFRARED EMITTER 880NM 3.2MW/SR CIRCULAR TOP MOUNT 2-PIN SMD T/R

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

APTD3216SF4C

Active

Kingbright

INFRARED EMITTER 880NM 3.2MW/SR CIRCULAR TOP MOUNT 2-PIN SMD T/R

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	APTD3216SF4C

Current - DC Forward (If) (Max) [Max]	50 mA
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Top View
Package / Case	1206 (3216 Metric)
Radiant Intensity (Ie) Min @ If [Min]	1.6 mW/sr
Type	Infrared (IR)
Viewing Angle	50 °
Voltage - Forward (Vf) (Typ)	1.3 V
Wavelength	880 nm

APTD3216 Series

Part	Voltage - Forward (Vf) (Typ)	Lens Transparency	Supplier Device Package	Color	Height (Max) [Max]	Configuration	Size / Dimension [y]	Size / Dimension [x]	Wavelength - Dominant	Current - Test	Mounting Type	Package / Case	Lens Style	Millicandela Rating	Viewing Angle	Wavelength - Peak	Lens Color	Lens Size [diameter]	Wavelength	Current - DC Forward (If) (Max) [Max]	Viewing Angle [custom]	Radiant Intensity (Ie) Min @ If [Min]	Type	Orientation	Operating Temperature [Max]	Operating Temperature [Min]
Kingbright APTD3216PBC/A	3.2 V	Clear	2-SMD	Blue	1.9 mm	Standard	1.6 mm	3.2 mm	470 nm	20 mA	Surface Mount	1206 (3216 Metric)	Round with Domed Top	400 mcd	50 °	468 nm	Colorless	1.6 mm
Kingbright APTD3216LQBC/D	2.65 V	Clear	2-SMD	Blue	1.9 mm	Standard	1.6 mm	3.2 mm	465 nm	2 mA	Surface Mount	1206 (3216 Metric)	Round with Domed Top	100 mcd	30 °	460 nm	Colorless	1.6 mm
Kingbright APTD3216SRCPRV	1.85 V	Clear	2-SMD	Red	1.9 mm	Standard	1.6 mm	3.2 mm	640 nm	20 mA	Surface Mount	1206 (3216 Metric)	Round with Domed Top	150 mcd	35 °	655 nm	Colorless	1.6 mm
Kingbright APTD3216F3C-P22											Surface Mount	1206 (3216 Metric)							940 nm	50 mA	40 °	2 mW/sr	Infrared (IR)	Top View	85 °C	-40 °C
Kingbright APTD3216SECK	2.1 V	Clear	2-SMD		1.9 mm	Standard	1.6 mm	3.2 mm	601 nm	20 mA	Surface Mount	1206 (3216 Metric)	Round with Domed Top	1000 mcd		610 nm	Colorless	1.6 mm			40 °
Kingbright APTD3216LSYCK	1.85 V	Clear	2-SMD	Yellow	1.9 mm	Standard	1.6 mm	3.2 mm	590 nm	2 mA	Surface Mount	1206 (3216 Metric)	Round with Domed Top	40 mcd		590 nm	Colorless	1.6 mm			40 °
Kingbright APTD3216SF4C	1.3 V										Surface Mount	1206 (3216 Metric)			50 °				880 nm	50 mA		1.6 mW/sr	Infrared (IR)	Top View	85 °C	-40 °C
Kingbright APTD3216SGC	2.2 V	Clear	2-SMD	Green	1.9 mm	Standard	1.6 mm	3.2 mm	568 nm	20 mA	Surface Mount	1206 (3216 Metric)	Round with Domed Top	50 mcd	35 °	565 nm	Colorless	1.6 mm
Kingbright APTD3216CGCK	2.1 V	Clear	2-SMD	Green	1.9 mm	Standard	1.6 mm	3.2 mm	570 nm	20 mA	Surface Mount	1206 (3216 Metric)	Round with Domed Top	300 mcd	35 °		Colorless	1.6 mm
Kingbright APTD3216LCGCK	1.9 V	Clear	2-SMD	Green	1.9 mm	Standard	1.6 mm	3.2 mm	570 nm	2 mA	Surface Mount	1206 (3216 Metric)	Round with Domed Top	25 mcd			Colorless	1.6 mm			40 °

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.77
		10	$ 0.50
		100	$ 0.33
		1000	$ 0.26
	Digi-Reel®	1	$ 0.77
		10	$ 0.50
		100	$ 0.33
		1000	$ 0.26
	Tape & Reel (TR)	2000	$ 0.24
		6000	$ 0.23
		10000	$ 0.23

Description

General part information

APTD3216 Series

Infrared (IR) Emitter 880nm 1.3V 50mA 1.6mW/sr @ 20mA 50° 1206 (3216 Metric)
