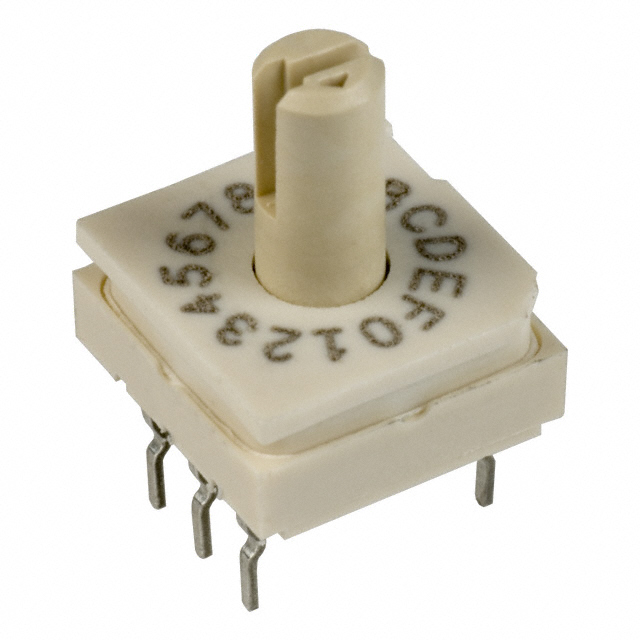

94HBB16T
ActiveGrayhill Inc.
SWITCH ROTARY DIP HEX 0.1A 50V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
94HBB16T
ActiveGrayhill Inc.
SWITCH ROTARY DIP HEX 0.1A 50V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 94HBB16T |
|---|---|
| Actuator Level | Raised |
| Actuator Type | Rotary with Shaft |
| Body Material | Plastic |
| Circuit | Hexadecimal |
| Contact Finish | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 100 mA |
| Features | Sealed |
| Height Above Board [z] | 12.57 mm |
| Height Above Board [z] | 0.495 in |
| Length | 0.39 " |
| Length | 9.91 mm |
| Mechanical Life | 10000 Steps |
| Mounting Type | Through Hole |
| Number of Positions | 16 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch | Full |
| Pitch [x] | 0.1 in |
| Pitch [x] | 2.54 mm |
| Termination Style | PC Pin |
| Voltage Rating | 50 V |
| Washable | True |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 6.13 | |
| 10 | $ 5.60 | |||
| 27 | $ 5.09 | |||
| 108 | $ 4.40 | |||
| 270 | $ 4.00 | |||
| 513 | $ 3.71 | |||
| 1026 | $ 3.44 | |||
| 2511 | $ 3.30 | |||
Description
General part information
94HBB16 Series
Dip Switch Hexadecimal 16 Position Through Hole Rotary with Shaft Actuator 100mA 50VDC
