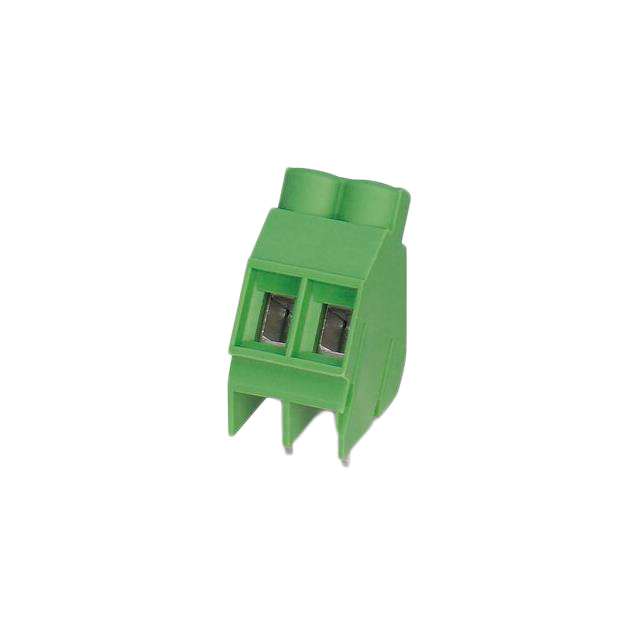

1704496

Active

Phoenix Contact

FIXED TERMINAL BLOCKS SMKDS 5/ 3-6 35 Z1L BD:1-3

Search across all available documentation for this part.

Active

Phoenix Contact

FIXED TERMINAL BLOCKS SMKDS 5/ 3-6 35 Z1L BD:1-3

Technical Specifications

Parameters and characteristics for this part

Specification	1704496

Color	Green
Current	32 A
Features	Interlocking (Side), Positions Stamped
Mating Orientation	35 °
Mating Orientation	145 °
Mounting Type	Through Hole
Number of Levels	1
Pitch [x]	0.25 in
Pitch [x]	6.35 mm
Positions Per Level	3
Voltage	630 V
Wire Termination	Screw - Rising Cage Clamp

Fixed Terminal Blocks SMKDS 5/ 3-6 35 Z1L BD:1-3

Part	Mounting Type	Features	Color	Wire Termination	Number of Levels	Current	Voltage	Mating Orientation	Mating Orientation	Positions Per Level	Pitch [x]	Pitch [x]
Phoenix Contact 1704496	Through Hole	Interlocking (Side) Positions Stamped	Green	Screw - Rising Cage Clamp	1	32 A	630 V	35 °	145 °	3	0.25 in	6.35 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fixed Terminal Blocks SMKDS 5/ 3-6 35 Z1L BD:1-3
