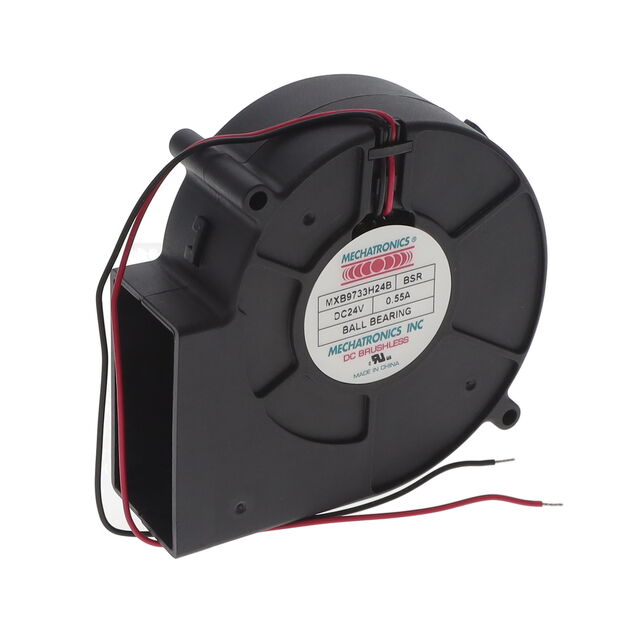

MXB9733H24B-BSR
ActiveMechatronics Bearing Group
FAN BLOWER 97X33MM 24VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
MXB9733H24B-BSR
ActiveMechatronics Bearing Group
FAN BLOWER 97X33MM 24VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MXB9733H24B-BSR |
|---|---|
| Air Flow | 0.798 mł/min |
| Air Flow | 28.5 CFM |
| Approval Agency | CE, cUL, TUV, UL |
| Bearing Type | Ball |
| Current Rating (Amps) | 0.55 A |
| Fan Type | Blower |
| Features | Thermal Overload Protector (TOP) |
| Material - Blade | Polybutylene Terephthalate (PBT) |
| Noise | 55 dB |
| RPM | 3300 RPM |
| Size / Dimension [x] | 97 mm |
| Size / Dimension [y] | 94.4 mm |
| Static Pressure | 1.06 in H2O |
| Static Pressure | 264 Pa |
| Termination | 2 Wire Leads |
| Voltage - Rated | 24 VDC |
| Weight | 180.08 g |
| Weight | 0.397 lb |
| Width [y] | 33 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 20.09 | |
| 10 | $ 18.34 | |||
| 25 | $ 17.65 | |||
| 50 | $ 16.49 | |||
| 100 | $ 15.21 | |||
| 250 | $ 14.98 | |||
| 500 | $ 14.86 | |||
Description
General part information
MXB9733 Series
Fan Blower 24VDC Rectangular/Rounded - 97mm L x 94.4mm H Ball 28.5 CFM (0.798m³/min) 2 Wire Leads
