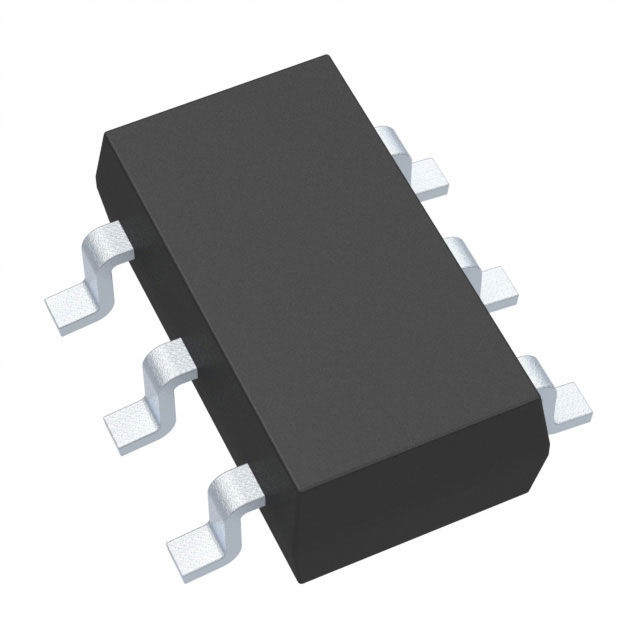

DS2484R+U

Active

Analog Devices Inc./Maxim Integrated

IC MASTER I2C-1WIRE 1CH SOT-6

Search across all available documentation for this part.

Active

Analog Devices Inc./Maxim Integrated

IC MASTER I2C-1WIRE 1CH SOT-6

Technical Specifications

Parameters and characteristics for this part

Part	Interface	Voltage - Supply [Min]	Voltage - Supply [Max]	Supplier Device Package	Package / Case	Function	Protocol	Current - Supply	Operating Temperature [Max]	Operating Temperature [Min]
Analog Devices Inc./Maxim Integrated DS2484Q+U	I2C	1.71 V	5.25 V	8-TDFN (2x3)	8-WFDFN Exposed Pad	Controller	1-Wire®	300 µA	85 °C	-40 °C
Analog Devices Inc./Maxim Integrated DS2484R+U	I2C	1.71 V	5.25 V	SOT-6	SOT-23-6	Controller	1-Wire®	300 µA	85 °C	-40 °C
Analog Devices Inc./Maxim Integrated DS2484Q+T	I2C	1.71 V	5.25 V	8-TDFN (2x3)	8-WFDFN Exposed Pad	Controller	1-Wire®	300 µA	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

1-Wire® Controller I2C Interface SOT-6
