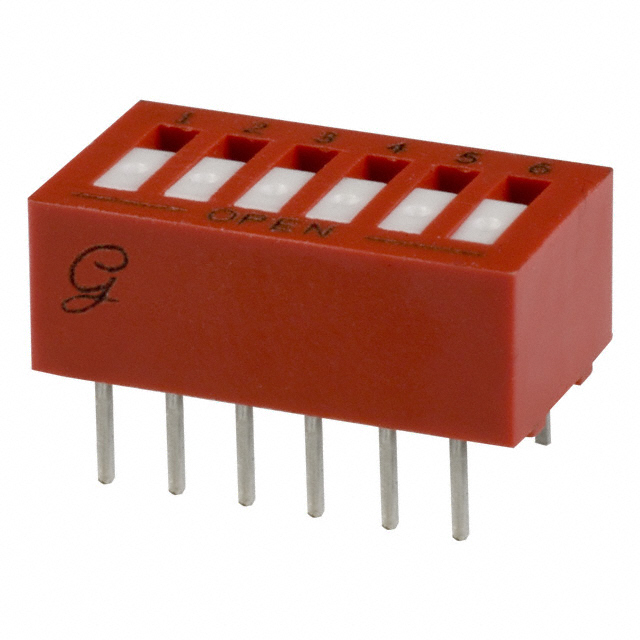

76RSB06T

Active

Grayhill Inc.

SWITCH ROCKER DIP SPST 0.15A 30V

Search across all available documentation for this part.

Active

Grayhill Inc.

SWITCH ROCKER DIP SPST 0.15A 30V

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Max]	Operating Temperature [Min]	Electrical Life	Contact Finish	Actuator Level	Actuator Type	Number of Positions	Voltage Rating	Features	Termination Style	Circuit	Contact Material	Height Above Board	Height Above Board	Mechanical Life	Length [x]	Length [x]	Body Material	Mounting Type	Pitch [x]	Pitch	Pitch [x]	Length	Length
Grayhill Inc. 76RSB06SLT	85 °C	-40 °C	2000 Steps	Gold	Flush Recessed	Rocker	6	30 VDC	Position Identification Line Tape Seal	PC Pin	SPST	Copper Alloy	0.292 in	7.41 mm	2000 Cycles	17.27 mm	0.68 "	Thermoplastic	Through Hole	0.1 in	Full	2.54 mm
Grayhill Inc. 76RSB06LT	85 °C	-40 °C	2000 Steps	Gold	Flush Recessed	Rocker	6	30 VDC	Position Identification Line	PC Pin	SPST	Copper Alloy	0.292 in	7.41 mm	2000 Cycles	17.27 mm	0.68 "	Thermoplastic	Through Hole	0.1 in	Full	2.54 mm
Grayhill Inc. 76RSB07ST	85 °C	-40 °C	2000 Steps	Gold	Flush Recessed	Rocker	7	30 VDC	Tape Seal	PC Pin	SPST	Copper Alloy	0.292 in	7.41 mm	2000 Cycles			Thermoplastic	Through Hole	0.1 in	Full	2.54 mm
Grayhill Inc. 76RSB06T	85 °C	-40 °C	2000 Steps	Gold	Flush Recessed	Rocker	6	30 VDC		PC Pin	SPST	Copper Alloy	0.292 in	7.41 mm	2000 Cycles	17.27 mm	0.68 "	Thermoplastic	Through Hole	0.1 in	Full	2.54 mm
Grayhill Inc. 76RSB12T	85 °C	-40 °C	2000 Steps	Gold	Flush Recessed	Rocker	12	30 VDC		PC Pin	SPST	Copper Alloy	0.292 in	7.41 mm	2000 Cycles			Thermoplastic	Through Hole	0.1 in	Full	2.54 mm	32.51 mm	1.28 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	15	$ 4.09

General part information

Dip Switch SPST 6 Position Through Hole Rocker Actuator 150mA 30VDC
