EK-U1-ZCU216-ES1-G

Obsolete

AMD

ZYNQ US+ RFSOC ZCU216 ES1 EVK

Search across all available documentation for this part.

Obsolete

AMD

ZYNQ US+ RFSOC ZCU216 ES1 EVK

Technical Specifications

Parameters and characteristics for this part

Specification	EK-U1-ZCU216-ES1-G

Contents	Power Supply, Cable(s), Accessories, Board(s)
For Use With/Related Products	XCZU49DR
Interconnect System	Pmod, FMC+
Platform	Zynq UltraScale+ RFSoC ZCU216 ES1
Suggested Programming Environment	Vivado
Type	FPGA + MCU/MPU SoC
Utilized IC / Part	XCZU49DR

Part	Suggested Programming Environment	Platform	Contents	Type	Interconnect System	For Use With/Related Products	Utilized IC / Part	Note
AMD EK-U1-ZCU216-G	Vivado	Zynq UltraScale+ RFSoC ZCU216	Accessories Board(s) Cable(s) Power Supply	FPGA + MCU/MPU SoC	FMC+ Pmod	XCZU49DR	XCZU49DR
AMD EK-U1-ZCU216-V1-G-J	Vivado	Zynq UltraScale+ RFSoC ZCU216 V1 Japan	Board(s) Cable(s) Accessories	FPGA + MCU/MPU SoC	FMC+ Pmod	XCZU49DR	XCZU49DR	J = Japan version does not ship with a power supply
AMD EK-U1-ZCU216-V1-G	Vivado	Zynq UltraScale+ RFSoC ZCU216 V1	Accessories Board(s) Cable(s) Power Supply	FPGA + MCU/MPU SoC	FMC+ Pmod	XCZU49DR	XCZU49DR
AMD EK-U1-ZCU216-ES1-G	Vivado	Zynq UltraScale+ RFSoC ZCU216 ES1	Accessories Board(s) Cable(s) Power Supply	FPGA + MCU/MPU SoC	FMC+ Pmod	XCZU49DR	XCZU49DR

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

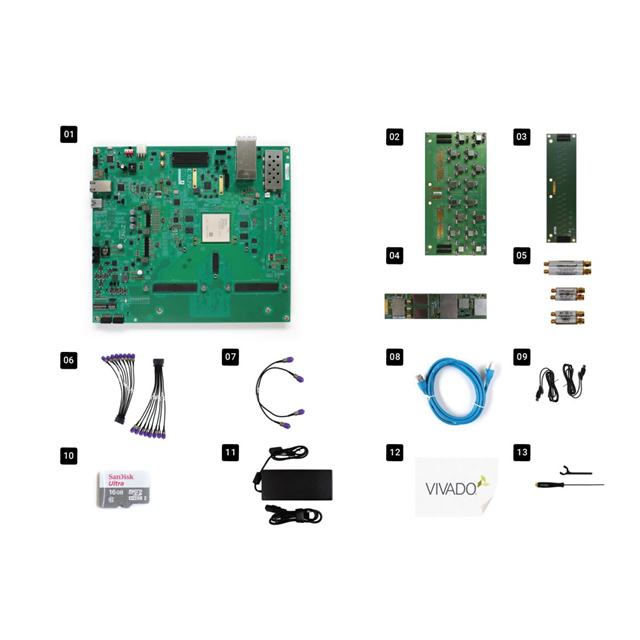

Zynq UltraScale+ RFSoC ZCU216 ES1 XCZU49DR Zynq® UltraScale+™ FPGA + MCU/MPU SoC Evaluation Board

Technical documentation and resources

No documents available
