23_N-50-0-16/133_NE

Active

Huber+Suhner, Inc.

RF COAX CONN, N, FLANGED JACK, 50 OHM ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Huber+Suhner, Inc.

RF COAX CONN, N, FLANGED JACK, 50 OHM ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	23_N-50-0-16/133_NE

Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Female Socket, Jack
Contact Termination	Solder Tab
Dielectric Material	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	1000 VDC

Part	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Max [Max]	Body Finish	Body Material	Connector Type	Contact Termination	Center Contact Material	Shield Termination	Number of Ports	Voltage Rating	Mating Cycles	Dielectric Material	Housing Color	Connector Style	Mounting Feature	Impedance	Center Contact Plating	Features	Mounting Type
Huber+Suhner, Inc. 23_N-50-0-1/133_NE	-65 ░C	165 °C	11 GHz	White Bronze	Brass	Female Socket Jack	Solder Cup	Bronze	Solder	1	1000 VDC	500	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Silver	N Type	Flange	50 Ohms	Gold
Huber+Suhner, Inc. 23_N-50-0-16/133_NE	-65 ░C	125 °C	11 GHz	White Bronze	Brass	Female Socket Jack	Solder Tab	Beryllium Copper	Solder	1	1000 VDC	500	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Silver	N Type	Flange	50 Ohms	Gold
Huber+Suhner, Inc. 23_N-50-0-23/133_NE	-65 ░C	165 °C	11 GHz	White Bronze	Brass	Female Socket Jack	Solder Cup	Beryllium Copper	Solder	1	1000 VDC	500	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Silver	N Type	Flange	50 Ohms	Gold
Huber+Suhner, Inc. 23_N-50-0-30/133_NE	-65 ░C	125 °C	11 GHz	White Bronze	Brass	Female Socket Jack	Solder	Beryllium Copper	Solder	1	1000 VDC	500	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Silver	N Type	Flange	50 Ohms	Gold	Extended Insulation	Panel Mount Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

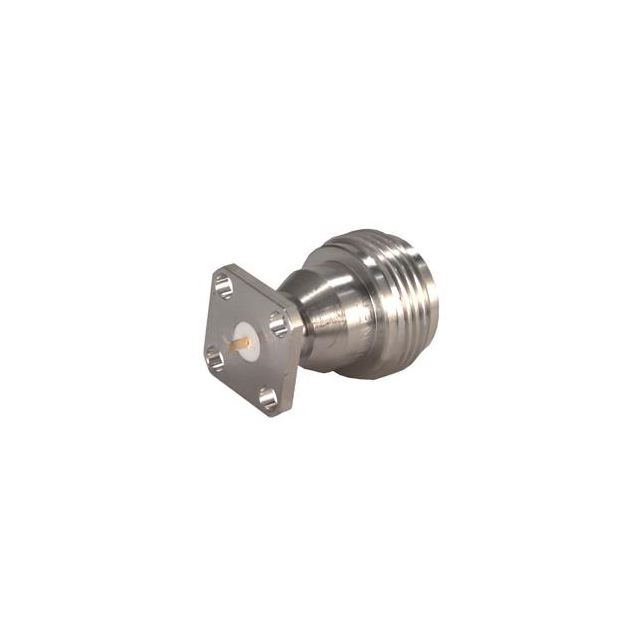

N Type Connector Jack, Female Socket 50 Ohms Panel Mount Solder Tab
