0002096106

Active

Molex

CONN PIN 14-20AWG GOLD CRIMP

Search across all available documentation for this part.

Active

Molex

CONN PIN 14-20AWG GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Part	Contact Termination	Type	Contact Finish	Wire Gauge [Max]	Wire Gauge [Min]	Pin or Socket	Contact Finish Thickness	Contact Finish Thickness	Contact Material
Molex 0002091139	Crimp	Power	Tin	24 AWG	22 AWG	Socket	0.51 µm	20 µin
Molex 0002095133	Crimp		Gold	22 AWG	17.5 AWG	Socket	1.27 µm	50 µin
Molex 0002091116
Molex 0002095147	Crimp	Power	Gold	30 AWG	24 AWG	Socket	0.38 µm	15 µin
Molex 0002092127	Crimp	Power	Tin	22 AWG	17.5 AWG	Pin	0.51 µm	20 µin
Molex 0002096106	Crimp	Power Stamped	Gold	20 AWG	14 AWG	Pin	0.38 µm	15 µin	Brass
Molex 0002091104	Crimp	Power	Tin	20 AWG	14 AWG	Socket	0.51 µm	20 µin
Molex 0002091143
Molex 0002091102	Crimp	Power	Tin	20 AWG	14 AWG	Socket	0.51 µm	20 µin
Molex 0002092111	Crimp	Power	Tin	18 AWG	14 AWG	Pin	0.51 µm	20 µin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

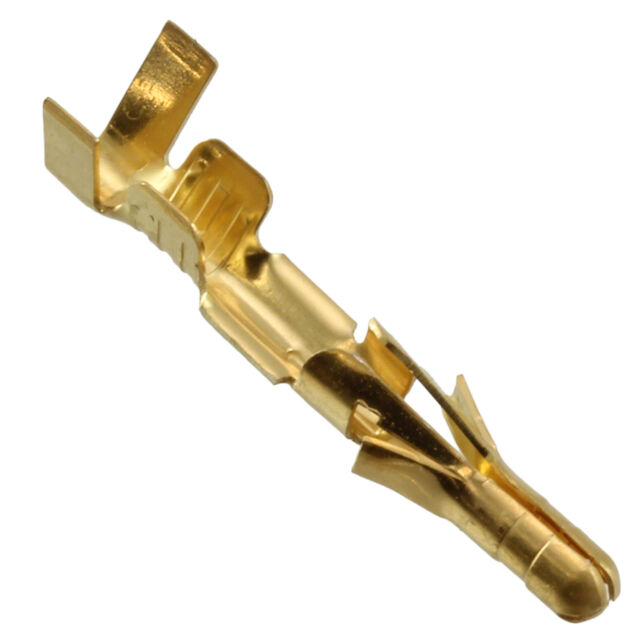

Pin Contact Gold Crimp 14-20 AWG Power, Stamped
