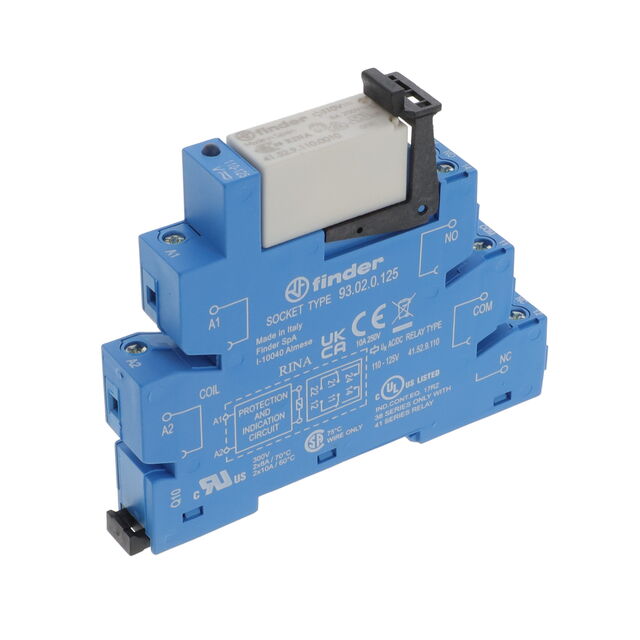

38.52.0.125.0060

Active

Finder Relays, Inc.

RELAY GEN PURPOSE DPDT 8A 125V

Search across all available documentation for this part.

Active

Finder Relays, Inc.

RELAY GEN PURPOSE DPDT 8A 125V

Technical Specifications

Parameters and characteristics for this part

Part	Operate Time	Coil Current	Termination Style	Features	Mounting Type	Contact Form	Coil Resistance	Relay Type	Coil Voltage	Load - Max Switching	Coil Type	Operating Temperature [Min]	Operating Temperature [Max]	Must Operate Voltage	Contact Material	Approval Agency	Must Release Voltage	Release Time	Switching Voltage [Max]	Contact Rating (Current)
Finder Relays, Inc. 38.52.0.125.5060	8 ms	4.6 mA	Screw Terminal	Socket Included	DIN Rail	DPDT (2 Form C)	27.2 kOhms	General Purpose	125 VAC/DC	3200 VA	Non Latching	-40 °C	55 °C	88 VAC/DC	Gold (Au) Silver Nickel (AgNi)	CE CSA cURus EAC RINA UKCA	12.5 VAC/DC	10 ms	400 VAC	8 A
Finder Relays, Inc. 38.52.0.024.0060	8 ms	20 mA	Screw Terminal	Socket Included	DIN Rail	DPDT (2 Form C)	1.2 kOhms	General Purpose	24 VAC	3200 VA	Non Latching	-40 °C	70 °C	19.2 VAC	Silver Nickel (AgNi)	CE CSA cURus EAC RINA UKCA	2.4 VAC/DC	10 ms	400 VAC	8 A
Finder Relays, Inc. 38.52.0.125.0060	8 ms	4.6 mA	Screw Terminal	Socket Included	DIN Rail	DPDT (2 Form C)	27.2 kOhms	General Purpose	125 VAC/DC	3200 VA	Non Latching	-40 °C	55 °C	88 VAC/DC	Silver Nickel (AgNi)	CE CSA cURus EAC RINA UKCA	12.5 VAC/DC	10 ms	400 VAC	8 A
Finder Relays, Inc. 38.52.0.240.0060	8 ms	3.8 mA	Screw Terminal	Socket Included	DIN Rail	DPDT (2 Form C)	63.2 kOhms	General Purpose	240 VDC 240 VAC	3200 VA	Non Latching	-40 °C	55 °C	184 VAC	Silver Nickel (AgNi)	CE CSA cURus EAC RINA UKCA	24 VAC	10 ms	400 VAC	8 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay DPDT (2 Form C) 125VAC/DC Coil DIN Rail

Technical documentation and resources
