BU-P3283

Active

Mueller Electric Co

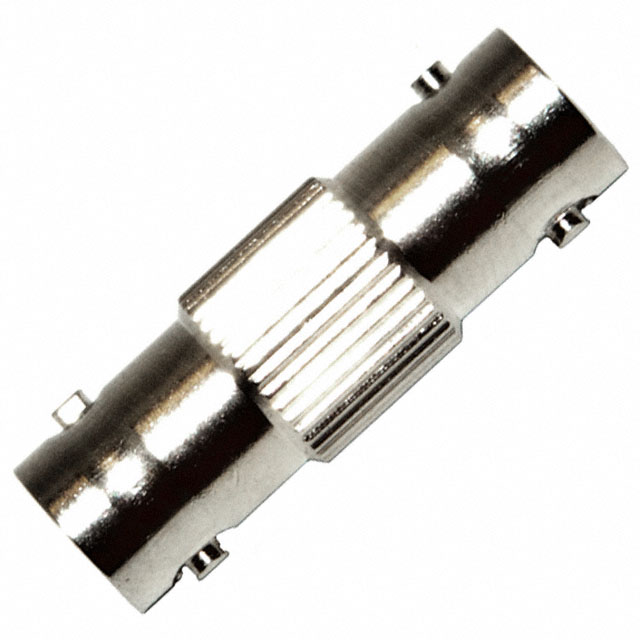

CONN BNC ADAPTER RCP/RCP 50OHM ST GOLD

Search across all available documentation for this part.

Active

Mueller Electric Co

CONN BNC ADAPTER RCP/RCP 50OHM ST GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	BU-P3283

Adapter Series	BNC to BNC
Adapter Type	Jack to Jack
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Same Series
Convert From (Adapter End)	BNC Jack, Female Socket
Convert To (Adapter End)	Female Socket, BNC Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	170 °C
Operating Temperature [Min]	-70 °C
Style	Straight

Part	Body Material	Adapter Type	Dielectric Material	Conversion Type	Fastening Type	Convert From (Adapter End)	Center Gender	Style	Center Contact Plating	Impedance	Center Contact Material	Mounting Type	Adapter Series	Operating Temperature [Min]	Operating Temperature [Max]	Convert To (Adapter End)
Mueller Electric Co BU-P3283	Brass	Jack to Jack	Polytetrafluoroethylene (PTFE)	Same Series	Bayonet Lock	BNC Jack Female Socket	Female to Female	Straight	Gold	50 Ohms	Beryllium Copper	Free Hanging (In-Line)	BNC to BNC	-70 °C	170 °C	BNC Jack Female Socket
Mueller Electric Co BU-P3285	Brass	Plug to Jack	Polytetrafluoroethylene (PTFE)	Same Series	Bayonet Lock	BNC Plug Male Pin		T-Shape	Gold	50 Ohms	Beryllium Copper	Free Hanging (In-Line)	BNC to BNC Dual	-70 °C	170 °C	BNC Jack Female Socket (2)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector BNC Jack, Female Socket To BNC Jack, Female Socket 50 Ohms
