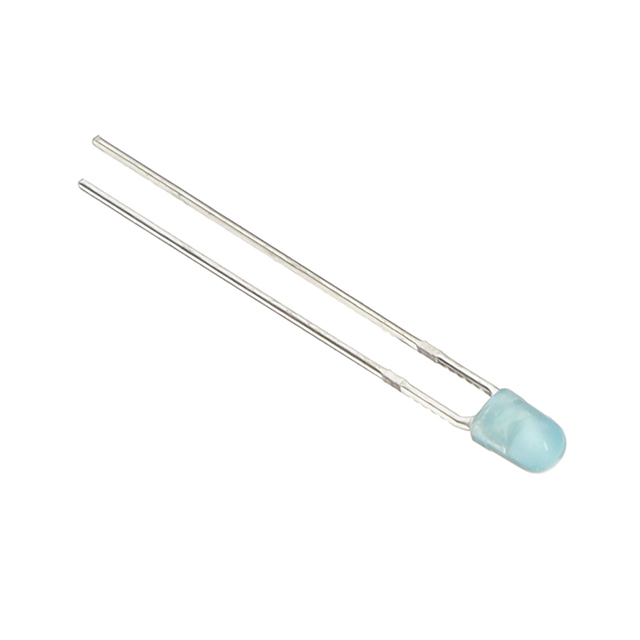

3BWD-S
ActiveBivar Inc.
LED, THROUGH HOLE, 3MM, BLUE, 430NM, 10MCD, DIFFUSED LENS, 40 DEG VIEWING ANGLE / BAG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3BWD-S
ActiveBivar Inc.
LED, THROUGH HOLE, 3MM, BLUE, 430NM, 10MCD, DIFFUSED LENS, 40 DEG VIEWING ANGLE / BAG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3BWD-S |
|---|---|
| Color | Blue |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 4.5 mm |
| Lens Color | Blue |
| Lens Size | 3 mm |
| Lens Size | T-1 |
| Lens Style | Round with Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 10 mcd |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Supplier Device Package | T-1 |
| Viewing Angle [custom] | 40 ° |
| Voltage - Forward (Vf) (Typ) | 4 V |
| Wavelength - Peak | 430 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
3BWD-S Series
Blue LED Indication - Discrete 4V Radial
