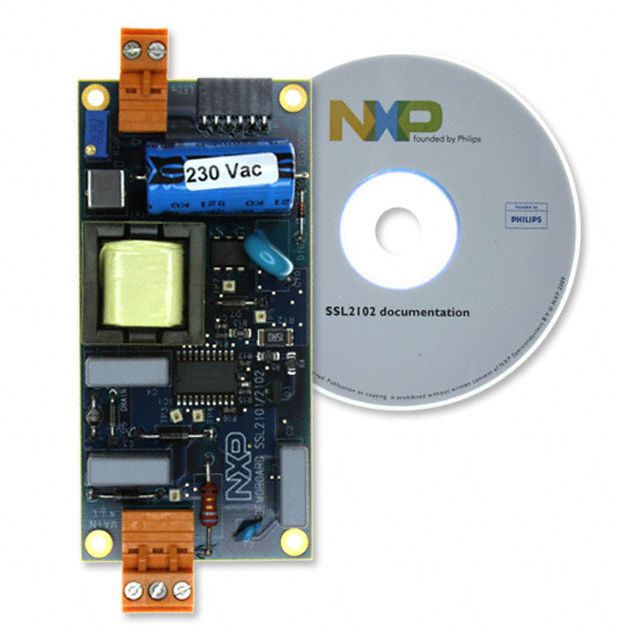

SSL2102T/DB/FLYB230V,598

Obsolete

Freescale Semiconductor - NXP

EVAL BOARD FOR SSL2102

Search across all available documentation for this part.

Obsolete

Freescale Semiconductor - NXP

EVAL BOARD FOR SSL2102

Technical Specifications

Parameters and characteristics for this part

Part	Number of Outputs	Type	Frequency	Internal Switch(s)	Mounting Type	Dimming	Package / Case	Package / Case [y]	Package / Case [y]	Voltage - Supply (Max) [Max]	Supplier Device Package	Topology	Voltage - Supply (Min) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output / Channel	Features	Supplied Contents	Voltage - Output [Min]	Voltage - Output [Max]	Outputs and Type	Utilized IC / Part	Voltage - Input [Min]	Voltage - Input [Max]
Freescale Semiconductor - NXP SSL2102T/N1,518	1	AC DC Offline Switcher	100 kHz		Surface Mount	TRIAC	20-SOIC	0.295 in	7.5 mm	40 V	20-SO	Flyback Step-Down (Buck)	8.5 V	-40 °C	100 °C	2 A
Freescale Semiconductor - NXP SSL2102T/DB/FLYB230V,598																1.05 A	Dimmable	Board(s)	9 V	23 V	1 Isolated Output	SSL2102	85 VAC	276 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

SSL2102 - 1 Isolated Output Dimmable LED Driver Evaluation Board
