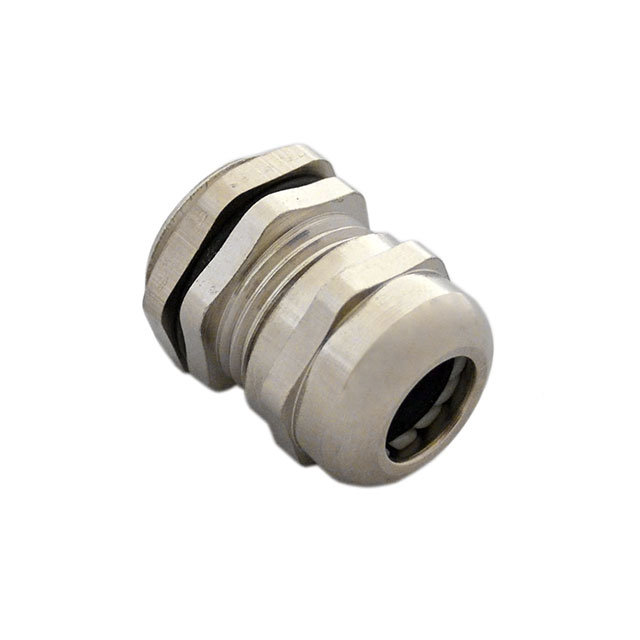

MPG-22311

Active

BUD INDUSTRIES

CABLE GLAND 5.08-9.91MM PG11

Search across all available documentation for this part.

Active

BUD INDUSTRIES

CABLE GLAND 5.08-9.91MM PG11

Technical Specifications

Parameters and characteristics for this part

Specification	MPG-22311

Color	Silver
Includes	Gasket
Ingress Protection	IP68 - Dust Tight, Waterproof
Material	Brass, Nickel Plated
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-20 C
Outside Cable Diameter (Max) [Max] [diameter]	9.91 mm
Outside Cable Diameter (Max) [Max] [diameter]	0.39 in
Outside Cable Diameter (Min) [Min] [diameter]	5.08 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.2 in
Panel Hole Size	18.5 mm
Panel Hole Size	0.73 in
Thread Length	0.24 in
Thread Length	6.1 mm
Thread Size	PG11
Type	Cable Gland

Part	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Material	Color	Ingress Protection	Includes	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Type	Operating Temperature [Max]	Operating Temperature [Min]	Thread Size	Panel Hole Size	Panel Hole Size	Thread Length	Thread Length
BUD INDUSTRIES MPG-22316	9.91 mm	0.39 in	Brass Nickel Plated	Silver	IP68 - Dust Tight Waterproof	Gasket	0.55 in	13.97 mm	Cable Gland	100 °C	-20 C	PG16
BUD INDUSTRIES MPG-22311	5.08 mm	0.2 in	Brass Nickel Plated	Silver	IP68 - Dust Tight Waterproof	Gasket	0.39 in	9.91 mm	Cable Gland	100 °C	-20 C	PG11	18.5 mm	0.73 in	0.24 in	6.1 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Brass, Nickel Plated PG11 Silver
