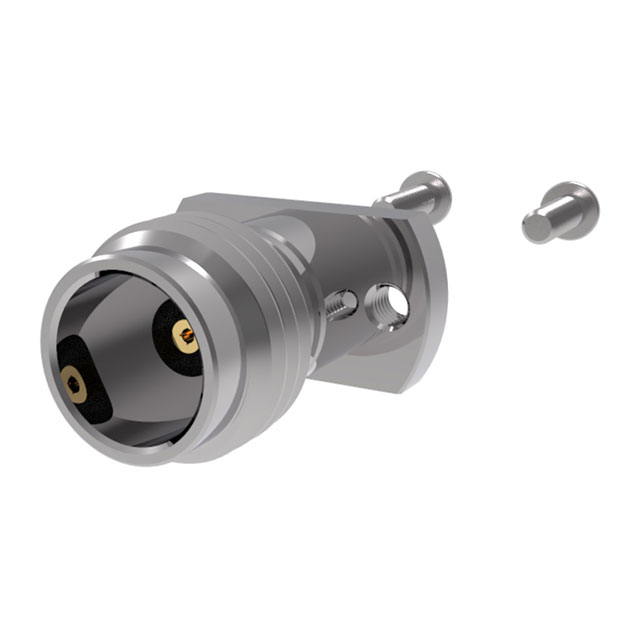

TMB-V4F2-3L1 - TMB-V4F2-3L1

TMB-V4F2-3L1

Active
CarlisleIT

2.4(F)2-H,VL,FIELDREP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
TMB-V4F2-3L1 - TMB-V4F2-3L1

TMB-V4F2-3L1

Active
CarlisleIT

2.4(F)2-H,VL,FIELDREP

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

SpecificationTMB-V4F2-3L1
Body MaterialStainless Steel
Center Contact MaterialBeryllium Copper
Center Contact PlatingGold
Connector StyleOS-50
Connector Style2.4 mm
Connector StyleAPC-2.4
Connector TypeFemale Socket, Jack
Contact TerminationCompression
FeaturesField Replaceable, For Hermetically Sealed Pin
Frequency - Max [Max]50 GHz
Housing ColorSilver
Impedance50 Ohms
Insertion Loss0.42 dB
Mating Cycles500
Mounting FeatureFlange
Mounting TypeSurface Mount
Number of Ports1
Operating Temperature [Max]85 °C
Operating Temperature [Min]-55 °C
Shield TerminationScrew
Voltage Rating500 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 43.57
1$ 43.57
10$ 38.16
10$ 38.16
25$ 36.51
25$ 36.51
40$ 35.33
40$ 35.33
100$ 34.15
100$ 34.15
300$ 32.27
300$ 32.27

Description

General part information

TMB-V4 Series

2.4mm (APC-2.4, OS-50) Connector Jack, Female Socket 50 Ohms Surface Mount Compression
