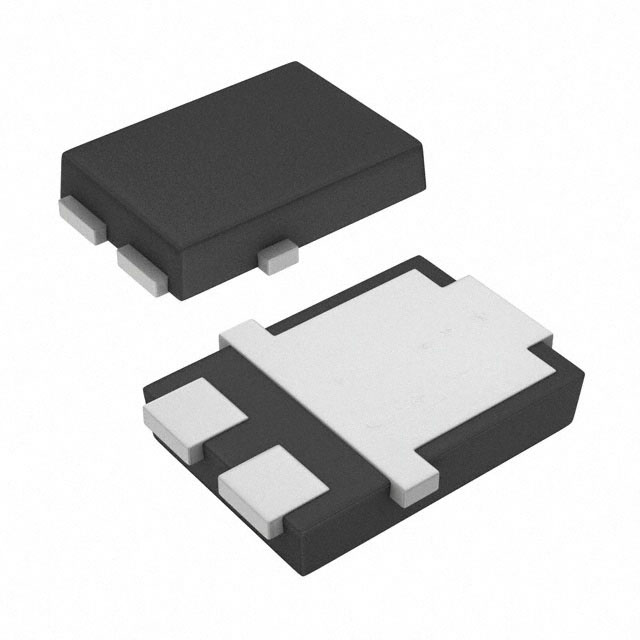

1K5SMPC15APH

Active

Taiwan Semiconductor Corporation

1500W, 15V, 5%, UNIDIRECTIONAL, TVS

Search across all available documentation for this part.

Active

Taiwan Semiconductor Corporation

1500W, 15V, 5%, UNIDIRECTIONAL, TVS

Technical Specifications

Parameters and characteristics for this part

Specification	1K5SMPC15APH

Current - Peak Pulse (10/1000µs)	70.8 A
Grade	Automotive
Mounting Type	Surface Mount
Operating Temperature	175 °C
Package / Case	3-PowerDFN, TO-277
Power - Peak Pulse	1.5 kW
Power - Peak Pulse	1500 W
Power Line Protection	False
Qualification	AEC-Q101
Supplier Device Package	SMPC4.6U
Type	Zener
Unidirectional Channels [custom]	1
Voltage - Breakdown (Min) [Min]	14.3 V
Voltage - Clamping (Max) @ Ipp	21.2 V
Voltage - Reverse Standoff (Typ)	12.8 V

Part	Qualification	Grade	Unidirectional Channels [custom]	Power - Peak Pulse	Power - Peak Pulse	Voltage - Reverse Standoff (Typ)	Type	Package / Case	Operating Temperature	Supplier Device Package	Voltage - Clamping (Max) @ Ipp	Mounting Type	Current - Peak Pulse (10/1000µs)	Voltage - Breakdown (Min) [Min]	Power Line Protection
Taiwan Semiconductor Corporation 1K5SMPC15APH	AEC-Q101	Automotive	1	1.5 kW	1500 W	12.8 V	Zener	3-PowerDFN TO-277	175 °C	SMPC4.6U	21.2 V	Surface Mount	70.8 A	14.3 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

21.2V Clamp 70.8A Ipp Tvs Diode Surface Mount SMPC4.6U
