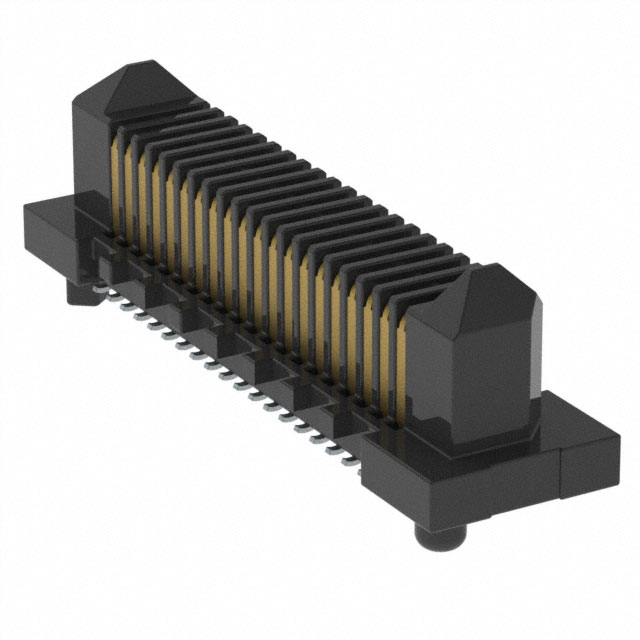

ER8-40P-0.8SV-2H
ActiveHirose Electric USA, Inc.
BOARD STACKING CONNECTOR,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ER8-40P-0.8SV-2H |
|---|---|
| Connector Type | Header, Center Strip Contacts |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Features | Board Guide |
| Height Above Board | 0.234 in |
| Height Above Board | 5.95 mm |
| Mated Stacking Heights | 7 mm, 9 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Pitch [x] | 0.8 mm |
| Pitch [x] | 0.031 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 5.23 | |
| 10 | $ 4.75 | |||
| 25 | $ 4.50 | |||
| 50 | $ 4.39 | |||
| 100 | $ 4.18 | |||
| Digi-Reel® | 1 | $ 5.23 | ||
| 10 | $ 4.75 | |||
| 25 | $ 4.50 | |||
| 50 | $ 4.39 | |||
| 100 | $ 4.18 | |||
| Tape & Reel (TR) | 350 | $ 3.14 | ||
| 700 | $ 2.93 | |||
| 1050 | $ 2.81 | |||
| 1750 | $ 2.68 | |||
| 2450 | $ 2.59 | |||
| 3500 | $ 2.54 | |||
Description
General part information
ER8-40P Series
40 Position Connector Header, Center Strip Contacts Surface Mount Gold
