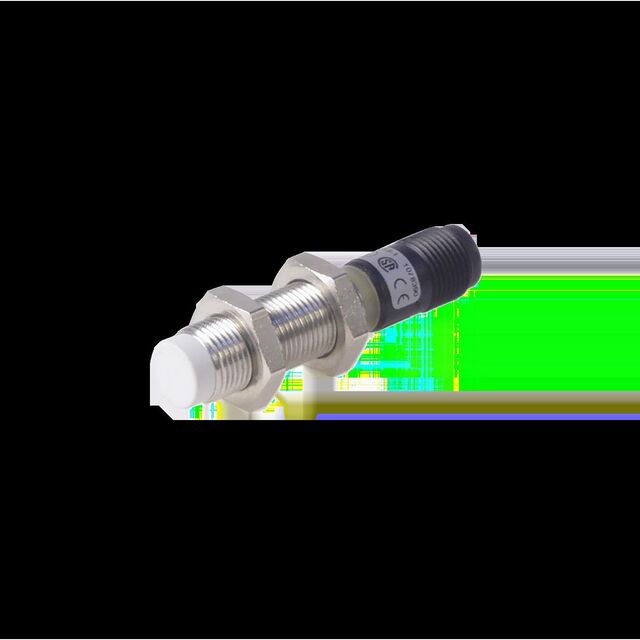

EI1204PPCSS-1

Active

CARLO GAVAZZI

SENSOR PROX INDUCTIVE 4MM CYLIND

Search across all available documentation for this part.

Active

CARLO GAVAZZI

SENSOR PROX INDUCTIVE 4MM CYLIND

Technical Specifications

Parameters and characteristics for this part

Part	Sensor Type	Response Frequency	Ingress Protection	Sensing Distance	Sensing Distance	Indicator [custom]	Output Type	Material - Body	Termination Style	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Package / Case
CARLO GAVAZZI EI1204TBOSL	Inductive	25 Hz	IP67 NEMA 1 NEMA 13 NEMA 3 NEMA 4 NEMA 6	4 mm	0.157 in	LED	SCR-NO 2-Wire	Stainless Steel	Cable Leads	Unshielded	70 °C	-25 °C	24 VAC	240 VAC	Cylinder Threaded - M12
CARLO GAVAZZI EI1204PPCSS-1	Inductive	500 Hz	IP67 NEMA 1 NEMA 13 NEMA 3 NEMA 4 NEMA 6	4 mm	0.157 in	LED	PNP-NC 3-Wire	Stainless Steel	Connector	Unshielded	70 °C	-25 °C	10 VDC	40 VDC	Cylinder Threaded - M12
CARLO GAVAZZI EI1204NPCSS-1	Inductive	500 Hz	IP67 NEMA 1 NEMA 13 NEMA 3 NEMA 4 NEMA 6	4 mm	0.157 in	LED	NPN-NC 3-Wire	Stainless Steel	Connector	Unshielded	70 °C	-25 °C	10 VDC	40 VDC	Cylinder Threaded - M12

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SENSOR PROX INDUCTIVE 4MM CYLIND
