C8001.99.07

Active

Prysmian Group

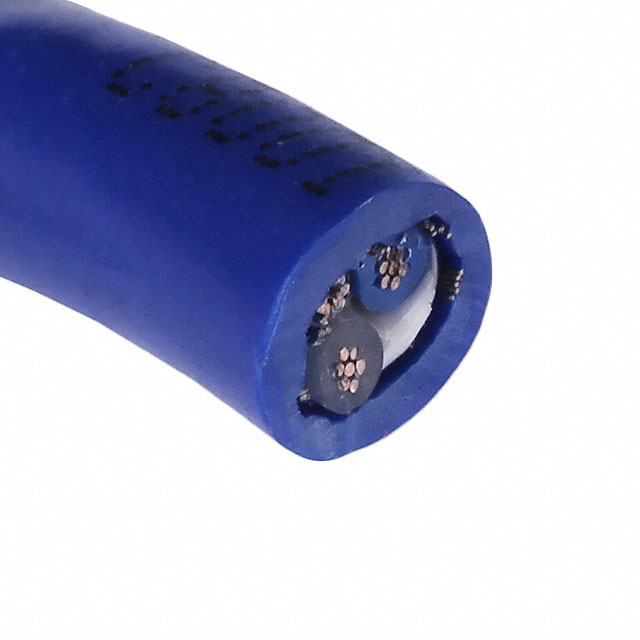

CABLE TWINAXIAL 20AWG 1000'

Search across all available documentation for this part.

Active

Prysmian Group

CABLE TWINAXIAL 20AWG 1000'

Technical Specifications

Parameters and characteristics for this part

Specification	C8001.99.07

Cable Type	Twinaxial
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	28 AWG
Dielectric Diameter [diameter]	0.02 in
Dielectric Diameter [diameter]	0.51 mm
Dielectric Material	Solid Polyethylene (PE)
Impedance	78 Ohms
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Blue
Length	304.8 m
Length	1000 ft
Shield Coverage	57 %, 100 %
Shield Material	Tinned, Flexfoil®, Copper
Shield Type	Foil, Braid
Usage	PLC, Data Transmission
Wire Gauge	20 AWG

Part	Shield Type	Impedance	Cable Type	Shield Material	Shield Coverage	Jacket (Insulation) Material	Length [x]	Length [x]	Dielectric Material	Conductor Strand [custom]	Conductor Strand [custom]	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Wire Gauge	Jacket Color	Conductor Material	Usage	Length	Length
Prysmian Group C8001.41.07	Braid Foil	78 Ohms	Twinaxial	Copper Flexfoil® Tinned	57 % 100 %	Poly-Vinyl Chloride (PVC)	100 ft	30.48 m	Solid Polyethylene (PE)	7	28 AWG	0.02 in	0.51 mm	20 AWG	Blue	Copper Tinned	Data Transmission PLC	15.24 m 304.8 m	50 ft 1000 ft
Prysmian Group C8001.99.07	Braid Foil	78 Ohms	Twinaxial	Copper Flexfoil® Tinned	57 % 100 %	Poly-Vinyl Chloride (PVC)			Solid Polyethylene (PE)	7	28 AWG	0.02 in	0.51 mm	20 AWG	Blue	Copper Tinned	Data Transmission PLC	304.8 m	1000 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Twinaxial Cable 20 AWG 1000.0' (304.80m) 78 Ohms
