Q16129PCD

Active

Hoffman Enclosures, Inc.

BOX PLASTIC GRAY 6.3"L X 4.72"W

Search across all available documentation for this part.

Active

Hoffman Enclosures, Inc.

BOX PLASTIC GRAY 6.3"L X 4.72"W

Technical Specifications

Parameters and characteristics for this part

Specification	Q16129PCD

Area (L x W)	29.8 in²
Area (L x W)	192 cm˛
Color	Gray
Container Type	Box
Design	Cover Included
Features	Wall Mount, PCB Supports, Sealing Gasket
Height [z]	90 mm
Height [z]	3.543 in
Material	Plastic, Polycarbonate
Ratings	4X, 12, IP67, 13, UL-508A, NEMA 4, 6
Size / Dimension [x]	160 mm
Size / Dimension [x]	6.299 "
Size / Dimension [y]	120 mm
Size / Dimension [y]	4.724 in
Thickness	3 mm
Thickness	0.118 in
Weight	0.9 lb
Weight	408.23 g

Part	Material	Features	Color	Design	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Weight	Weight	Height [z]	Height [z]	Container Type	Area (L x W)	Area (L x W)	Thickness	Thickness	Ratings
Hoffman Enclosures, Inc. Q16129PCD	Plastic Polycarbonate	PCB Supports Sealing Gasket Wall Mount	Gray	Cover Included	120 mm	160 mm	6.299 "	4.724 in	0.9 lb	408.23 g	90 mm	3.543 in	Box	29.8 in²	192 cm˛	3 mm	0.118 in	12 13 4X 6 IP67 NEMA 4 UL-508A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

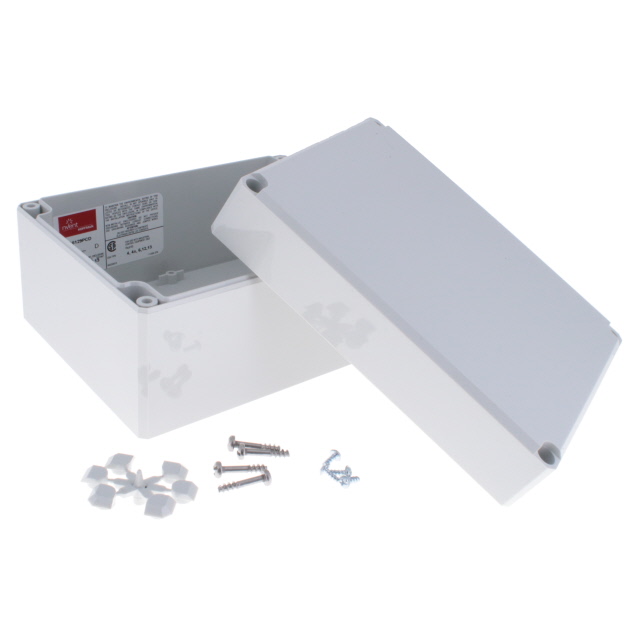

Box Plastic, Polycarbonate Gray Cover Included 6.299" L x 4.724" W (160.00mm x 120.00mm) X 3.543" (90.00mm)
