ELFP0721P0

Active

AMPHENOL PCD

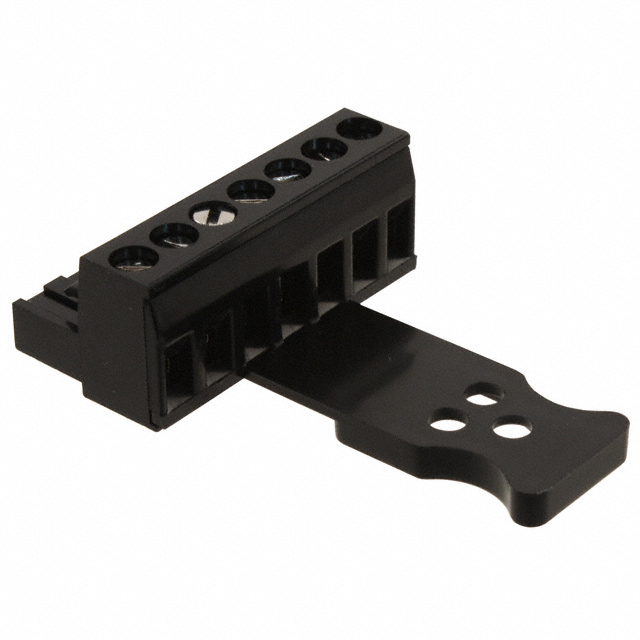

TERM BLOCK PLUG 7POS STR 5.08MM

Search across all available documentation for this part.

Active

AMPHENOL PCD

TERM BLOCK PLUG 7POS STR 5.08MM

Technical Specifications

Parameters and characteristics for this part

Specification	ELFP0721P0

Color	Black
Contact Material	Copper Alloy
Contact Mating Finish	Tin-Lead
Features	Strain Relief, Retention Latches (Non-Wire Side)
Housing Material	Polyphenylene Oxide (PPO)
Insulation Height	16.8 mm
Insulation Height	0.661 in
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	7
Operating Temperature	105 C
Pitch [x]	0.2 in
Pitch [x]	5.08 mm
Positions Per Level	7
Termination Style	Screw - Rising Cage Clamp
Torque - Screw	0.79 Nm
Torque - Screw	7 Lb-In
Type	Plug, Female Sockets
Voltage - UL	300 V
Wire Gauge or Range - AWG	12 AWG
Wire Gauge or Range - AWG [Max]	26 AWG
Wire Gauge or Range - AWG [Min]	14 AWG

Part	Number of Levels	Mounting Type	Type	Contact Material	Operating Temperature	Housing Material	Positions Per Level	Number of Positions	Contact Mating Finish	Features	Material Flammability Rating	Voltage - UL	Torque - Screw	Torque - Screw	Termination Style	Insulation Height	Insulation Height	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG	Wire Gauge or Range - AWG [Min]	Color	Pitch [x]	Pitch [x]
AMPHENOL PCD ELFP0721P0	1	Free Hanging (In-Line)	Plug Female Sockets	Copper Alloy	105 C	Polyphenylene Oxide (PPO)	7	7	Tin-Lead	Retention Latches (Non-Wire Side) Strain Relief	UL94 V-0	300 V	0.79 Nm	7 Lb-In	Screw - Rising Cage Clamp	16.8 mm	0.661 in	26 AWG	12 AWG	14 AWG	Black	0.2 in	5.08 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) 180° Free Hanging (In-Line)
