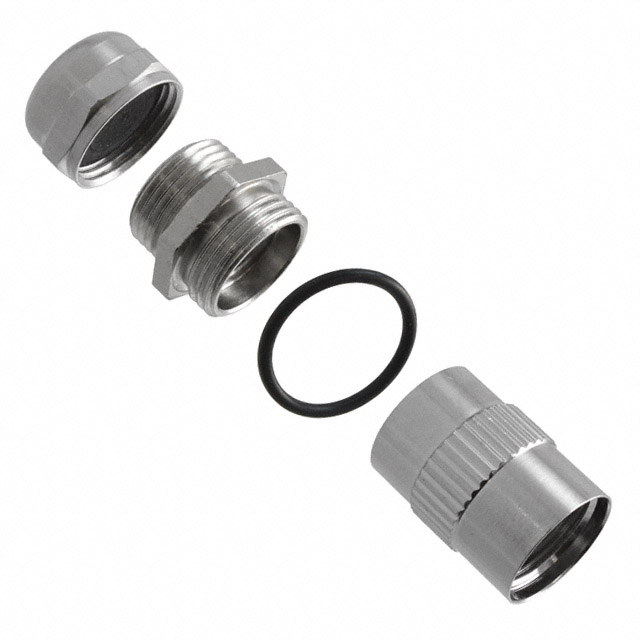

UT014JCS

Active

Souriau-Sunbank by Eaton

CONN BACKSH W/CLMP SZ14 PG13.5

Search across all available documentation for this part.

Active

Souriau-Sunbank by Eaton

CONN BACKSH W/CLMP SZ14 PG13.5

Technical Specifications

Parameters and characteristics for this part

Specification	UT014JCS

Cable Exit	180 °
Cable Opening [Max] [diameter]	0.394 in
Cable Opening [Max] [diameter]	10 mm
Cable Opening [Min] [diameter]	6 mm
Cable Opening [Min] [diameter]	0.236 in
Color	Silver
Features	Strain Relief, Sealing Gland
For Use With/Related Products	Trim Trio® UTO and UTOW Connectors
Ingress Protection	IP68, IP69K
Material	Brass
Material Flammability Rating	UL94 V-0
Shell Size - Insert	14
Shielding	Unshielded
Thread Size	PG13.5
Type	Backshell, Cable Clamp

Part	Material	Shell Size - Insert	Type	Cable Exit	For Use With/Related Products	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Color	Thread Size	Cable Opening [Min] [diameter]	Cable Opening [diameter]	Cable Opening [Max] [diameter]	Cable Opening [diameter]	Shielding	Features	Ingress Protection	Material Flammability Rating	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Diameter - Outside	Diameter - Outside	Cable Opening [custom]	Cable Opening [custom]
Souriau-Sunbank by Eaton UT014AD	Metal	14	Backshell Heat Shrink Adapter	180 °	Trim Trio® UTO and UTOW Connectors	27 mm	1.063 in	Silver	13/16-20 UNEF
Souriau-Sunbank by Eaton UT014JCSL	Brass	14	Backshell Cable Clamp	180 °	Trim Trio® UTO and UTOW Connectors			Silver	PG13.5	0.315 in	8 mm	0.472 in	12 mm	Unshielded	Sealing Gland Strain Relief	IP68 IP69K	UL94 V-0
Souriau-Sunbank by Eaton UT014JCL	Brass	14	Backshell Cable Clamp	180 °	Trim Trio® UTO and UTOW Connectors			Silver	PG13.5	0.315 in	8 mm	0.472 in	12 mm	Unshielded	Sealing Gland Strain Relief	IP68 IP69K	UL94 V-0
Souriau-Sunbank by Eaton UT014JCS	Brass	14	Backshell Cable Clamp	180 °	Trim Trio® UTO and UTOW Connectors			Silver	PG13.5	0.236 in		0.394 in		Unshielded	Sealing Gland Strain Relief	IP68 IP69K	UL94 V-0	6 mm	10 mm
Souriau-Sunbank by Eaton UT014AC	Metal	14	Backshell Cable Clamp	180 °	Trim Trio® UTO and UTOW Connectors			Silver	13/16-20 UNEF					Unshielded	Clamp Screws		UL94 V-0			0.886 in	22.5 mm	10 mm	0.394 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Silver Connector Backshell, Cable Clamp PG13.5 14
