5123.1007.0

Active

SCHURTER Inc.

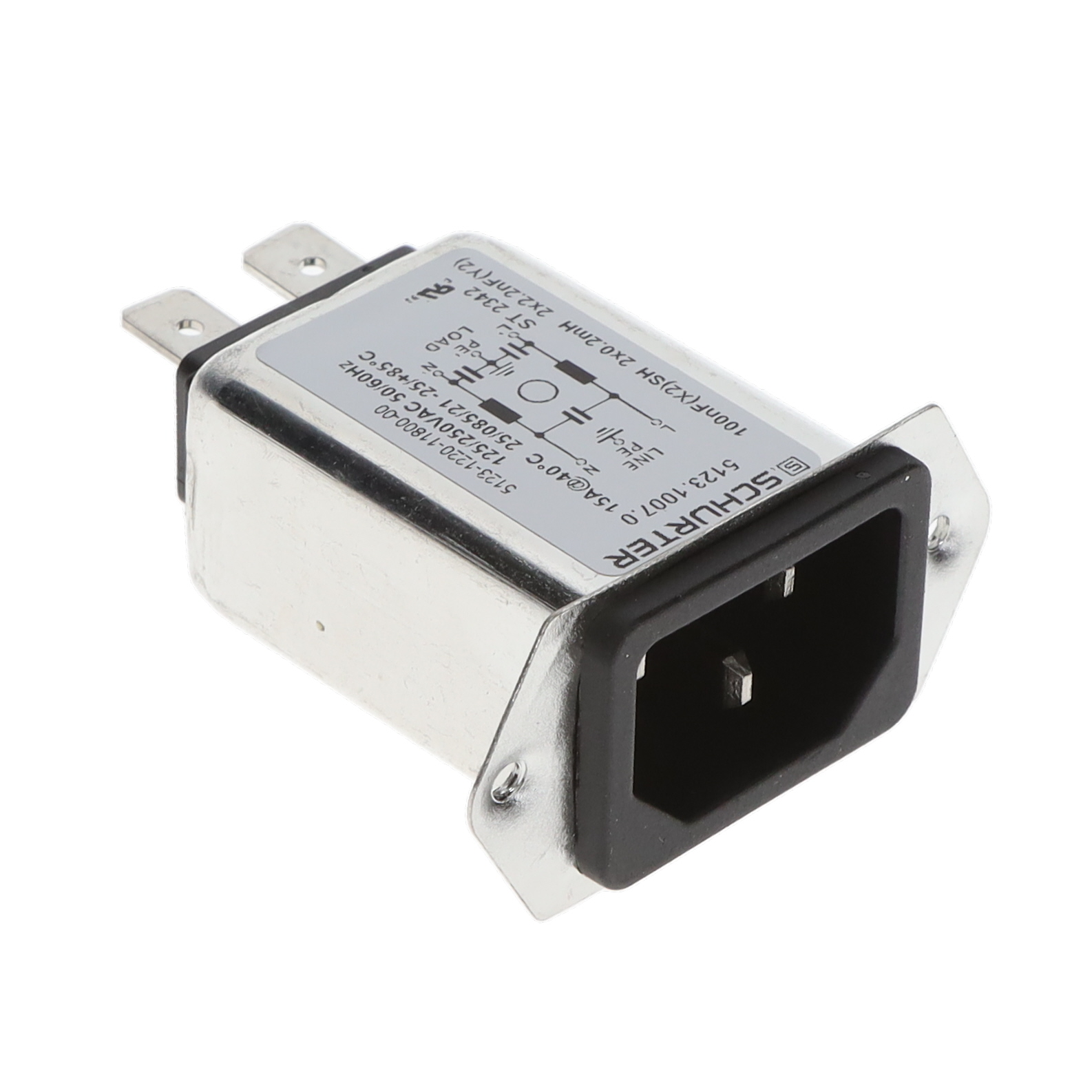

AC POWER ENTRY MODULES 5123 PEM WITH FILTER 15A

Search across all available documentation for this part.

Active

SCHURTER Inc.

AC POWER ENTRY MODULES 5123 PEM WITH FILTER 15A

Technical Specifications

Parameters and characteristics for this part

Specification	5123.1007.0

Accomodates a Fuse	False
Approval Agency	cURus, ENEC
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	15 A
Current Rating - Filter	15 A
Features	Rear Side Mount, Shielded
Filter Type	Filtered (EMI, RFI) - Commercial
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Flange
Panel Cutout Dimensions [x]	29 mm
Panel Cutout Dimensions [y]	21.5 mm
Panel Thickness	8 mm
Panel Thickness	0.315 in
Termination	0.25 in
Termination	6.3 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

Part	Panel Thickness	Panel Thickness	Material Flammability Rating	Accomodates a Fuse	Connector Style	Features	Termination	Termination	Termination	Mounting Type	Approval Agency	Filter Type	Voltage Rating - Appliance Inlet	Ingress Protection	Connector Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Current Rating - Appliance Inlet	Current Rating - Filter
SCHURTER Inc. 5123.1007.0	8 mm	0.315 in	UL94 V-0		IEC 320-C14	Rear Side Mount Shielded	0.25 in	6.3 mm	Quick Connect	Flange Panel Mount	cURus ENEC	Filtered (EMI RFI) - Commercial	250 VAC	IP40	Receptacle Male Blades - Module	21.5 mm	29 mm	15 A	15 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange
