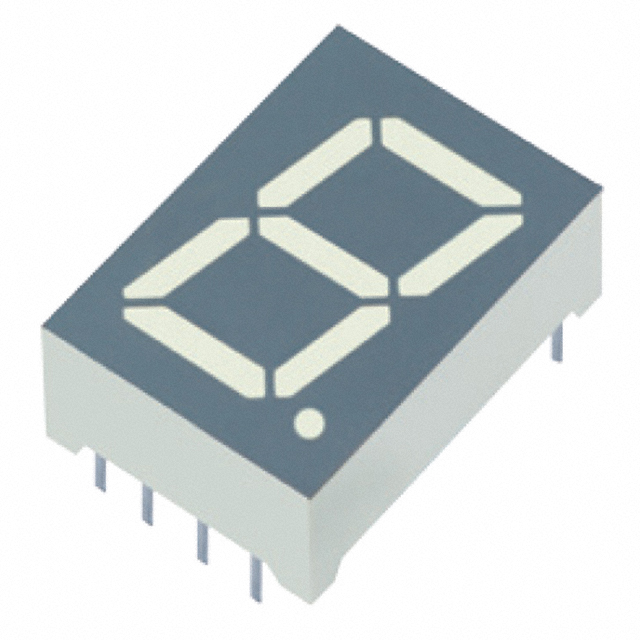

XDMR13C

Obsolete

SunLED

DISPLAY 7SEG 0.52" SGL RED 10DIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XDMR13C

Obsolete

SunLED

DISPLAY 7SEG 0.52" SGL RED 10DIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XDMR13C

Color	Red
Common Pin	Common Cathode
Current - Test	10 mA
Digit/Alpha Size	13.21 mm
Digit/Alpha Size	0.52 in
Display Type	7-Segment
Millicandela Rating	10 mcd
Number of Characters [custom]	1
Package / Case	0.6 in
Package / Case	15.24 mm
Package / Case	10-DIP
Power Dissipation (Max) [Max]	75 mw
Size / Dimension [x]	17.5 mm
Size / Dimension [x]	0.689 in
Size / Dimension [y]	12.4 mm
Size / Dimension [y]	0.488 in
Size / Dimension [z]	7 mm
Size / Dimension [z]	0.276 in
Voltage - Forward (Vf) (Typ)	1.8 V
Wavelength - Peak	655 nm

XDMR13 Series

Part	Number of Characters [custom]	Voltage - Forward (Vf) (Typ)	Millicandela Rating	Common Pin	Wavelength - Peak	Power Dissipation (Max) [Max]	Package / Case	Package / Case	Package / Case	Color	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Digit/Alpha Size	Digit/Alpha Size	Display Type	Current - Test
SunLED XDMR13C	1	1.8 V	10 mcd	Common Cathode	655 nm	75 mw	0.6 in	15.24 mm	10-DIP	Red	12.4 mm	7 mm	0.276 in	0.488 in	17.5 mm	0.689 in	13.21 mm	0.52 in	7-Segment	10 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

XDMR13 Series

Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Cathode 1.8V 10mA 0.689" H x 0.488" W x 0.276" D (17.50mm x 12.40mm x 7.00mm) 10-DIP (0.600", 15.24mm)
