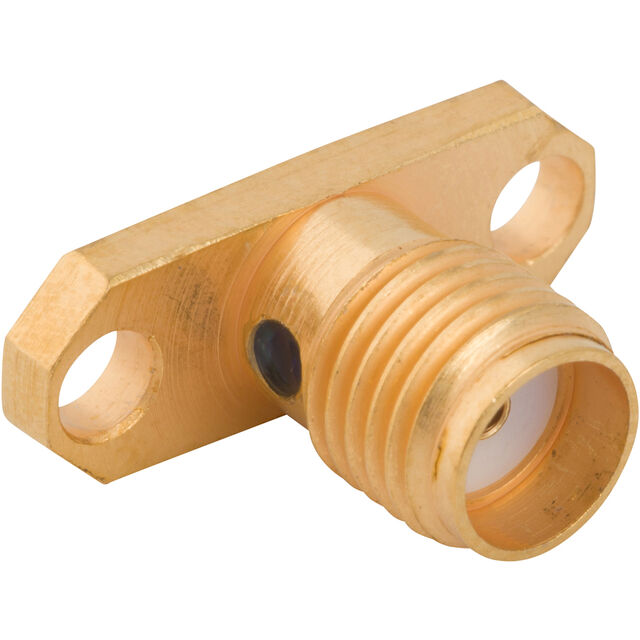

901-B6001-392

Active

Amphenol RF

CONN SMA JACK STR 50 OHM SOLDER

Search across all available documentation for this part.

Active

Amphenol RF

CONN SMA JACK STR 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	901-B6001-392

Body Finish	Gold
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12.4 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

Part	Shield Termination	Impedance	Number of Ports	Connector Style	Connector Type	Body Finish	Center Contact Plating	Contact Termination	Body Material	Housing Color	Mating Cycles	Center Contact Material	Frequency - Max [Max]	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Feature
Amphenol RF 901-B6001-392	Solder	50 Ohms	1	SMA	Female Socket Jack	Gold	Gold	Solder	Stainless Steel	Gold	500	Beryllium Copper	12.4 GHz	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	Flange

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMA Connector Jack, Female Socket 50 Ohms Panel Mount Solder
