MS3106E14S-2S
ActiveITT Cannon, LLC

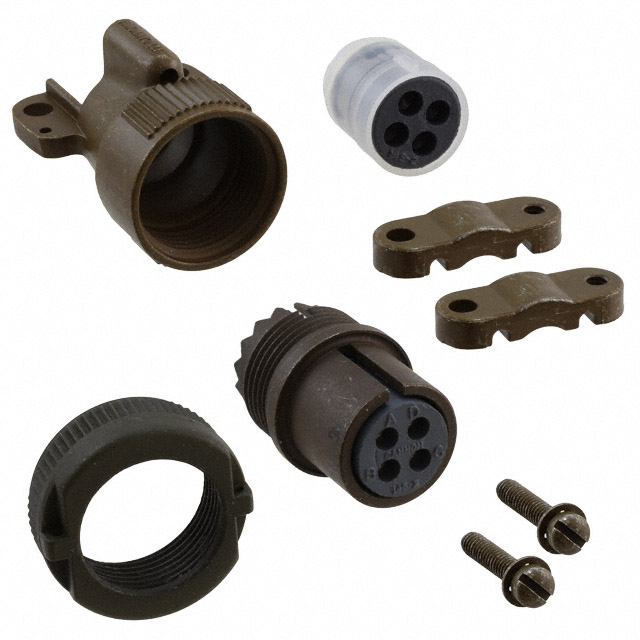

CIRCULAR CONNECTOR, MIL-DTL-5015 SERIES, MS3106 SERIES, STRAIGHT PLUG, 4 CONTACTS, SOLDER SOCKET
Deep-Dive with AI
Search across all available documentation for this part.
MS3106E14S-2S
ActiveITT Cannon, LLC
CIRCULAR CONNECTOR, MIL-DTL-5015 SERIES, MS3106 SERIES, STRAIGHT PLUG, 4 CONTACTS, SOLDER SOCKET
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MS3106E14S-2S |
|---|---|
| Color | Olive Drab |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Silver |
| Current Rating (Amps) | 22 A |
| Features | Coupling Nut, Cable Clamp |
| Grade | Military |
| Ingress Protection | Environment Resistant |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 4 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | N |
| Primary Material | Metal |
| Qualification | MIL-DTL-5015 |
| Shell Finish | Olive Drab Cadmium |
| Shell Material | Aluminum Alloy |
| Shell Size - Insert | 14S-2 |
| Voltage Rating | 250 VDC, 200 VAC |
MS3106E14 Series
| Part | Qualification | Current Rating (Amps) | Ingress Protection | Connector Type | Features | Contact Finish - Mating | Mounting Type | Orientation | Color | Operating Temperature [Min] | Operating Temperature [Max] | Shell Finish | Shell Material | Primary Material | Shell Size - Insert | Grade | Voltage Rating | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ITT Cannon, LLC | MIL-DTL-5015 | 22 A | Environment Resistant | Male Pins Plug | Cable Clamp Coupling Nut | Silver | Free Hanging (In-Line) | N | Olive Drab | -55 °C | 125 °C | Olive Drab Cadmium | Aluminum Alloy | Metal | 14S-7 | Military | 500 VAC 700 VDC | |
ITT Cannon, LLC | MIL-DTL-5015 | 22 A | Environment Resistant | Female Sockets Plug | Cable Clamp Coupling Nut | Silver | Free Hanging (In-Line) | N | Olive Drab | -55 °C | 125 °C | Olive Drab Cadmium | Aluminum Alloy | Metal | 14S-2 | Military | 200 VAC 250 VDC | 4 |
ITT Cannon, LLC | MIL-DTL-5015 | 22 A | Environment Resistant | Male Pins Plug | Cable Clamp Coupling Nut | Silver | Free Hanging (In-Line) | N | Olive Drab | -55 °C | 125 °C | Olive Drab Cadmium | Aluminum Alloy | Metal | 14S-5 | Military | 200 VAC 250 VDC | |
ITT Cannon, LLC | MIL-DTL-5015 | 22 A | Environment Resistant | Male Pins Plug | Cable Clamp Coupling Nut | Silver | Free Hanging (In-Line) | X | Olive Drab | -55 °C | 125 °C | Olive Drab Cadmium | Aluminum Alloy | Metal | 14S-2 | Military | 200 VAC 250 VDC | 4 |
ITT Cannon, LLC | MIL-DTL-5015 | 22 A | Environment Resistant | Male Pins Plug | Cable Clamp Coupling Nut | Silver | Free Hanging (In-Line) | W | Olive Drab | -55 °C | 125 °C | Olive Drab Cadmium | Aluminum Alloy | Metal | 14S-7 | Military | 500 VAC 700 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
MS3106E14 Series
4 Position Circular Connector Plug, Female Sockets Solder Cup
