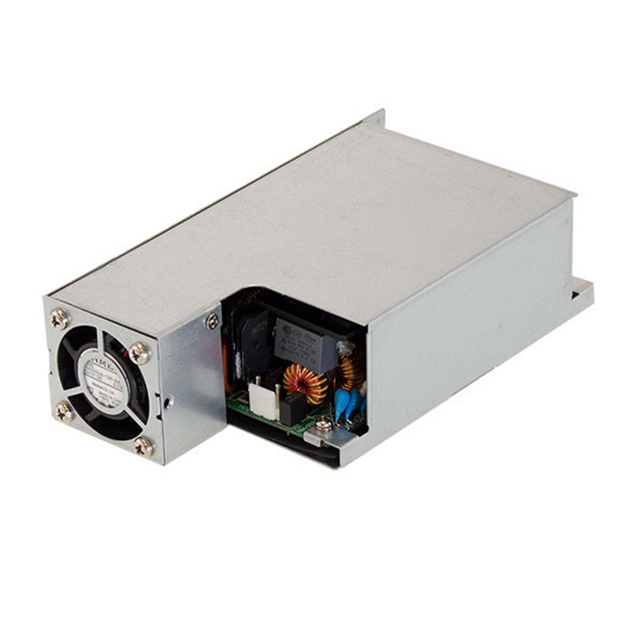

RPS-400-12-SF

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 12V 250W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RPS-400-12-SF

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 12V 250W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RPS-400-12-SF

Applications	Medical
Approval Agency	CB, CE, cURus, TUV
Current - Output 1	20.8 A
Efficiency	91.5 %
Features	Remote Sense, Universal Input, Adjustable Output
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-30 °C
Power (Watts)	250 W
Power (Watts)	400 W
Size / Dimension [x]	6.3 "
Size / Dimension [x]	160 mm
Size / Dimension [y]	86.1 mm
Size / Dimension [y]	3.39 in
Size / Dimension [z]	42.9 mm
Size / Dimension [z]	1.69 in
Type	Enclosed
Voltage - Input [Max]	370 VDC, 264 VAC
Voltage - Input [Min]	80 VAC, 113 VDC
Voltage - Isolation	4000 V
Voltage - Output 1	12 V

RPS-400 Series

Part	Efficiency	Voltage - Input [Min]	Voltage - Input [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Applications	Features	Type	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Voltage - Output 1	Mounting Type	Power (Watts)	Power (Watts)	Number of Outputs	Current - Output 1	Size / Dimension [z]	Size / Dimension [y]
MEAN WELL USA Inc. RPS-400-36-SF	94 %	80 VAC 113 VDC	264 VAC 370 VDC	86.1 mm	6.3 "	42.9 mm	1.69 in	160 mm	3.39 in	Medical	Adjustable Output Remote Sense Universal Input	Enclosed	4000 V	70 °C	-30 °C	CB CE cURus TUV	36 V	Chassis Mount	252 W	403 W	1	7 A
MEAN WELL USA Inc. RPS-400-36-C	94 %	80 VAC 113 VDC	264 VAC 370 VDC	86.1 mm	5.11 in	42.9 mm		129.8 mm		Medical	Adjustable Output Remote Sense Universal Input	Enclosed	4000 V	70 °C	-30 °C	CB CE cURus TUV	36 V	Chassis Mount	252 W	403 W	1	7 A	1.69 in	3.39 in
MEAN WELL USA Inc. RPS-400-36	94 %	80 VAC 113 VDC	264 VAC 370 VDC	76.2 mm	5 in	34.8 mm		127 mm		Medical	Adjustable Output Remote Sense Universal Input	Open Frame	4000 V	70 °C	-30 °C	CB CE cURus TUV	36 V	Chassis Mount	252 W	403 W	1	7 A	1.37 in	3 "
MEAN WELL USA Inc. RPS-400-18-TF	93 %	80 VAC 113 VDC	264 VAC 370 VDC	86.1 mm	5.11 in	66.5 mm		129.8 mm		Medical	Adjustable Output Remote Sense Universal Input	Enclosed	4000 V	70 °C	-30 °C	CB CE cURus TUV	18 V	Chassis Mount	250 W 401 W		1	13.9 A	2.62 in	3.39 in
MEAN WELL USA Inc. RPS-400-15	92 %	80 VAC 113 VDC	264 VAC 370 VDC	76.2 mm	5 in	34.8 mm		127 mm		Medical	Adjustable Output Remote Sense Universal Input	Open Frame	4000 V	70 °C	-30 °C	CB CE cURus TUV	15 V	Chassis Mount	251 W	401 W	1	16.7 A	1.37 in	3 "
MEAN WELL USA Inc. RPS-400-36-TF	94 %	80 VAC 113 VDC	264 VAC 370 VDC	86.1 mm	5.11 in	66.5 mm		129.8 mm		Medical	Adjustable Output Remote Sense Universal Input	Enclosed	4000 V	70 °C	-30 °C	CB CE cURus TUV	36 V	Chassis Mount	252 W	403 W	1	7 A	2.62 in	3.39 in
MEAN WELL USA Inc. RPS-400-15-TF	92 %	80 VAC 113 VDC	264 VAC 370 VDC	86.1 mm	5.11 in	66.5 mm		129.8 mm		Medical	Adjustable Output Remote Sense Universal Input	Enclosed	4000 V	70 °C	-30 °C	CB CE cURus TUV	15 V	Chassis Mount	251 W	401 W	1	16.7 A	2.62 in	3.39 in
MEAN WELL USA Inc. RPS-400-12-C	91.5 %	80 VAC 113 VDC	264 VAC 370 VDC	86.1 mm	5.11 in	42.9 mm		129.8 mm		Medical	Adjustable Output Remote Sense Universal Input	Enclosed	4000 V	70 °C	-30 °C	CB CE cURus TUV	12 V	Chassis Mount	250 W	400 W	1	20.8 A	1.69 in	3.39 in
MEAN WELL USA Inc. RPS-400-12-SF	91.5 %	80 VAC 113 VDC	264 VAC 370 VDC	86.1 mm	6.3 "	42.9 mm	1.69 in	160 mm	3.39 in	Medical	Adjustable Output Remote Sense Universal Input	Enclosed	4000 V	70 °C	-30 °C	CB CE cURus TUV	12 V	Chassis Mount	250 W	400 W	1	20.8 A
MEAN WELL USA Inc. RPS-400-27	93.5 %	80 VAC 113 VDC	264 VAC 370 VDC	76.2 mm	5 in	34.8 mm		127 mm		Medical	Adjustable Output Remote Sense Universal Input	Open Frame	4000 V	70 °C	-30 °C	CB CE cURus TUV	27 V	Chassis Mount	251 W	402 W	1	9.3 A	1.37 in	3 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 100.76
		5	$ 94.93
		10	$ 92.52
		25	$ 89.43

Description

General part information

RPS-400 Series

Enclosed AC DC Converters 1 Output 12V 80 ~ 264 VAC, 113 ~ 370 VDC Input
