65010_SMA-50-1/19-_NE

Active

Huber+Suhner, Inc.

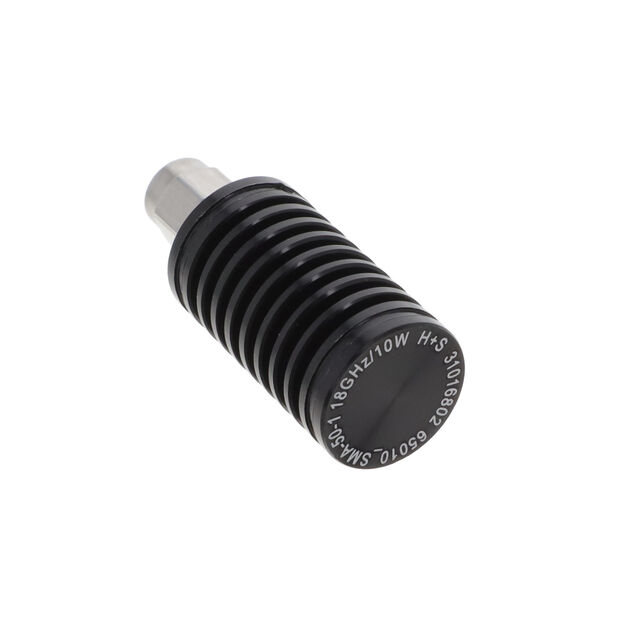

RF TERMINATOR, SMA PLUG, 18GHZ, 50 OHM ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Huber+Suhner, Inc.

RF TERMINATOR, SMA PLUG, 18GHZ, 50 OHM ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	65010_SMA-50-1/19-_NE

Body Material	Stainless Steel
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Finish	Gold
Contact Material	Beryllium Copper
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging, Cap

Part	Connector Style	Dielectric Material	Body Material	Mounting Type	Frequency - Max [Max]	Contact Material	Connector Type	Contact Finish	Impedance
Huber+Suhner, Inc. 65010_SMA-50-1/19-_NE	SMA	Polytetrafluoroethylene (PTFE)	Stainless Steel	Cap Free Hanging	18 GHz	Beryllium Copper	Male Pin Plug	Gold	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Terminator Coax Connector Plug, Male Pin SMA 50 Ohms
