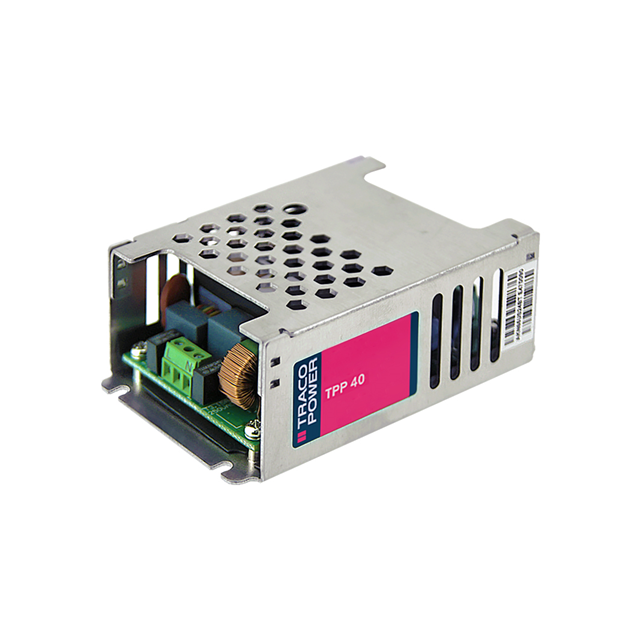

TPP 40-105

Active

Traco Power

AC/DC CONVERTER 5V 40W

Search across all available documentation for this part.

Active

Traco Power

AC/DC CONVERTER 5V 40W

Technical Specifications

Parameters and characteristics for this part

Specification	TPP 40-105

Applications	Medical
Approval Agency	CB, cURus, CE
Current - Output 1	8 A
Efficiency	90 %
Features	Adjustable Output, Universal Input
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	40 W
Size / Dimension [x]	3.53 "
Size / Dimension [x]	89.7 mm
Size / Dimension [y]	2.38 "
Size / Dimension [y]	60.5 mm
Size / Dimension [z]	1.31 "
Size / Dimension [z]	33.3 mm
Type	Enclosed
Voltage - Input [Max]	370 VDC, 264 VAC
Voltage - Input [Min]	85 VAC, 120 VDC
Voltage - Isolation	4000 V
Voltage - Output 1	5 V

Switching Power Supplies

Part	Current - Output 1	Type	Applications	Features	Voltage - Isolation	Voltage - Output 3	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Approval Agency	Voltage - Input [Min]	Voltage - Input [Max]	Current - Output 3	Voltage - Output 2	Power (Watts)	Efficiency	Voltage - Output 1	Current - Output 2	Number of Outputs	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]
Traco Power TPP 40-3512	1.67 A	Enclosed	Medical	Adjustable Output Universal Input	4000 V	12 V	2.38 "	34.5 mm	102.4 mm	1.36 "	60.5 mm	4.03 in	CB CE cURus	85 VAC 120 VDC	264 VAC 370 VDC	500 mA	5 V	66 W	86 %	24 V	4 A	3	Chassis Mount	85 °C	-40 °C
Traco Power TPP 40-221	3.34 A	Enclosed	Medical	Adjustable Output Universal Input	4000 V		2.38 "	34.5 mm	102.4 mm	1.36 "	60.5 mm	4.03 in	CB CE cURus	85 VAC 120 VDC	264 VAC 370 VDC		5 V		89 %	12 V	4 A	2	Chassis Mount	85 °C	-40 °C
Traco Power TPP 40-105	8 A	Enclosed	Medical	Adjustable Output Universal Input	4000 V		2.38 "	33.3 mm	89.7 mm	1.31 "	60.5 mm	3.53 "	CB CE cURus	85 VAC 120 VDC	264 VAC 370 VDC			40 W	90 %	5 V		1	Chassis Mount	85 °C	-40 °C
Traco Power TPP 40-112	3.34 A	Enclosed	Medical	Universal Input	4000 V		2.38 "	33.3 mm	89.7 mm	1.31 "	60.5 mm	3.53 "	CB CE cURus	85 VAC 120 VDC	264 VAC 370 VDC			40 W	92 %	12 V		1	Chassis Mount	85 °C	-40 °C
