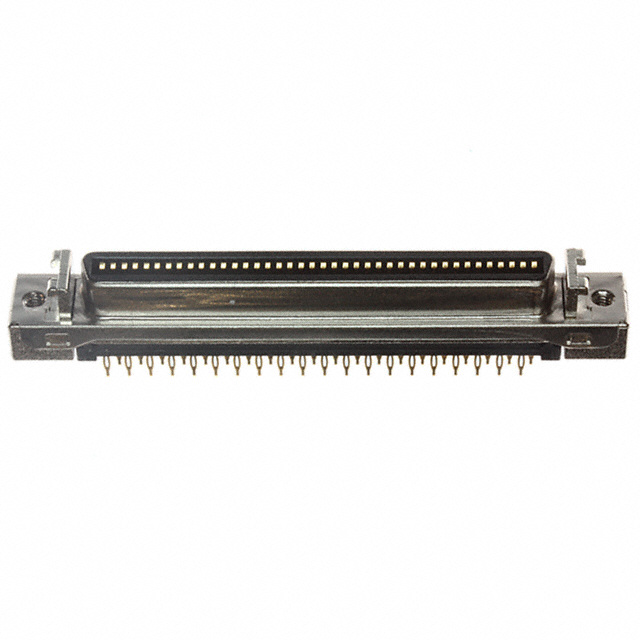

10280-R21TS
Active3M (TC)
CONN RCPT 80POS PCB PRESS-FIT
Deep-Dive with AI
Search across all available documentation for this part.
10280-R21TS
Active3M (TC)
CONN RCPT 80POS PCB PRESS-FIT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 10280-R21TS |
|---|---|
| Connector Style | Outer Shroud Contacts |
| Connector Type | Receptacle |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Features | Shielded |
| Flange Feature | Housing/Shell |
| Flange Feature | 2.6 M |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 80 |
| Number of Rows | 2 |
| Termination | Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 12.33 | |
| 10 | $ 10.69 | |||
| 25 | $ 10.34 | |||
Description
General part information
10280 Series
80 Position Receptacle Connector Panel Mount, Through Hole Press-Fit
