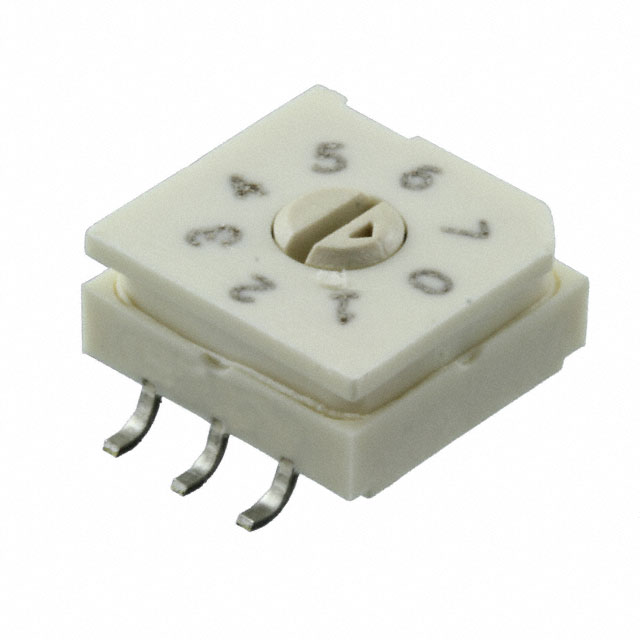

94HAB08WRT

Active

Grayhill Inc.

SWITCH DIP N.O./N.C. SP8T 8 FLUSH SCREWDRIVER 0.03A 30VDC GULL WING 10000CYCLES 2.54MM SMD T/R

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

94HAB08WRT

Active

Grayhill Inc.

SWITCH DIP N.O./N.C. SP8T 8 FLUSH SCREWDRIVER 0.03A 30VDC GULL WING 10000CYCLES 2.54MM SMD T/R

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	94HAB08WRT

Actuator Level	Flush, Recessed
Actuator Type	Rotary for Tool
Body Material	Plastic
Circuit	Octal
Contact Finish	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	100 mA
Features	Sealed
Height Above Board	0.225 in
Height Above Board	5.72 mm
Length	0.39 "
Length	9.91 mm
Mechanical Life	10000 Steps
Mounting Type	Surface Mount
Number of Positions	8
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Pitch	Full
Pitch [x]	0.1 in
Pitch [x]	2.54 mm
Termination Style	Gull Wing
Voltage Rating	50 V
Washable	True

94HBC16 Series

Coded Rotary Switches Rotary DIP Switch Flush actuator

Part	Voltage Rating	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Circuit	Mounting Type	Height Above Board	Height Above Board	Contact Material	Length	Length	Actuator Type	Contact Finish	Body Material	Pitch [x]	Pitch	Pitch [x]	Mechanical Life	Actuator Level	Features	Number of Positions	Number of Positions
Grayhill Inc. 94HAB16JRT	50 V	100 mA	85 °C	-40 °C	J Lead	Hexadecimal	Surface Mount	0.25 in	6.35 mm	Copper Alloy	0.39 "	9.91 mm	Rotary for Tool	Gold	Plastic	0.1 in	Full	2.54 mm	10000 Steps	Flush Recessed	Sealed	16
Grayhill Inc. 94HBC16WRT	50 V	100 mA	85 °C	-40 °C	Gull Wing	Hexadecimal Complement	Surface Mount	0.225 in	5.72 mm	Copper Alloy	0.39 "	9.91 mm	Rotary with Shaft	Gold	Plastic	0.1 in	Full	2.54 mm	10000 Steps	Raised	Sealed	16
Grayhill Inc. 94HAC10WRT	50 V	100 mA	85 °C	-40 °C	Gull Wing	BCD Complement	Surface Mount	0.225 in	5.72 mm	Copper Alloy	0.39 "	9.91 mm	Rotary for Tool	Gold	Plastic	0.1 in	Full	2.54 mm	10000 Steps	Flush Recessed	Sealed		10
Grayhill Inc. 94HAB16WRT	50 V	100 mA	85 °C	-40 °C	Gull Wing	Hexadecimal	Surface Mount	0.225 in	5.72 mm	Copper Alloy	0.39 "	9.91 mm	Rotary for Tool	Gold	Plastic	0.1 in	Full	2.54 mm	10000 Steps	Flush Recessed	Sealed	16
Grayhill Inc. 94HAB08WT	50 V	100 mA	85 °C	-40 °C	Gull Wing	Octal	Surface Mount	0.225 in	5.72 mm	Copper Alloy	0.39 "	9.91 mm	Rotary for Tool	Gold	Plastic	0.1 in	Full	2.54 mm	10000 Steps	Flush Recessed	Sealed		8
Grayhill Inc. 94HAB16T	50 V	100 mA	85 °C	-40 °C	PC Pin	Hexadecimal	Through Hole	0.225 in	5.72 mm	Copper Alloy	0.39 "	9.91 mm	Rotary for Tool	Gold	Plastic	0.1 in	Full	2.54 mm	10000 Steps	Flush Recessed	Sealed	16
Grayhill Inc. 94HAB08WRT	50 V	100 mA	85 °C	-40 °C	Gull Wing	Octal	Surface Mount	0.225 in	5.72 mm	Copper Alloy	0.39 "	9.91 mm	Rotary for Tool	Gold	Plastic	0.1 in	Full	2.54 mm	10000 Steps	Flush Recessed	Sealed		8
Grayhill Inc. 94HBC16WT	50 V	100 mA	85 °C	-40 °C	Gull Wing	Hexadecimal Complement	Surface Mount	0.225 in	5.72 mm	Copper Alloy	0.39 "	9.91 mm	Rotary with Shaft	Gold	Plastic	0.1 in	Full	2.54 mm	10000 Steps	Raised	Sealed	16

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 5.78
		10	$ 5.28
		25	$ 4.80
		100	$ 4.15
		250	$ 3.77
	Digi-Reel®	1	$ 5.78
		10	$ 5.28
		25	$ 4.80
		100	$ 4.15
		250	$ 3.77
	Tape & Reel (TR)	750	$ 3.50
		1500	$ 3.24
Sager	N/A	750	$ 3.72
		3000	$ 2.34

Description

General part information

94HBC16 Series

Coded Rotary Switches Rotary DIP Switch Flush actuator

Documents

Technical documentation and resources
