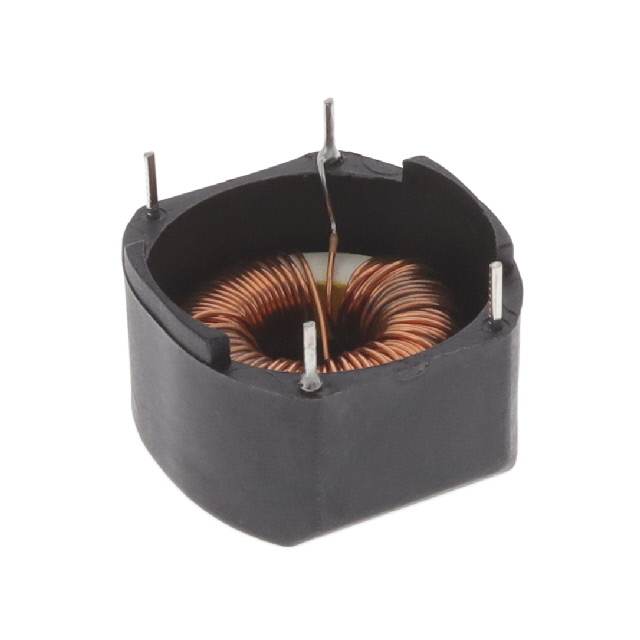

DLF-28-0004

Active

SCHURTER Inc.

CMC 1.5A 2LN TH

Search across all available documentation for this part.

Active

SCHURTER Inc.

CMC 1.5A 2LN TH

Technical Specifications

Parameters and characteristics for this part

Part	Shielding	Mounting Type	Inductance	Tolerance	Current Rating (Amps)	Frequency - Self Resonant	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	DC Resistance (DCR)
SCHURTER Inc. DLF-28-0002	Unshielded	Through Hole	3 mH	15 %	600 mA	300 kHz	4 Leads Horizontal Radial	16.7 mm	0.657 in	125 °C	-40 °C	28.3 mm	1.079 "	1.114 in	27.4 mm
SCHURTER Inc. DLF-28-0006	Unshielded	Through Hole	100 µH	15 %	3 A	7.5 MHz	4 Leads Horizontal Radial	16.7 mm	0.657 in	125 °C	-40 °C	28.3 mm	1.079 "	1.114 in	27.4 mm	70 mOhm
SCHURTER Inc. DLF-28-0004	Unshielded	Through Hole	500 µH	15 %	1.5 A	1.2 MHz	4 Leads Horizontal Radial	16.7 mm	0.657 in	125 °C	-40 °C	28.3 mm	1.079 "	1.114 in	27.4 mm	270 mOhm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

500 µH Unshielded Inductor 1.5 A 270mOhm Radial, Horizontal, 4 Leads
