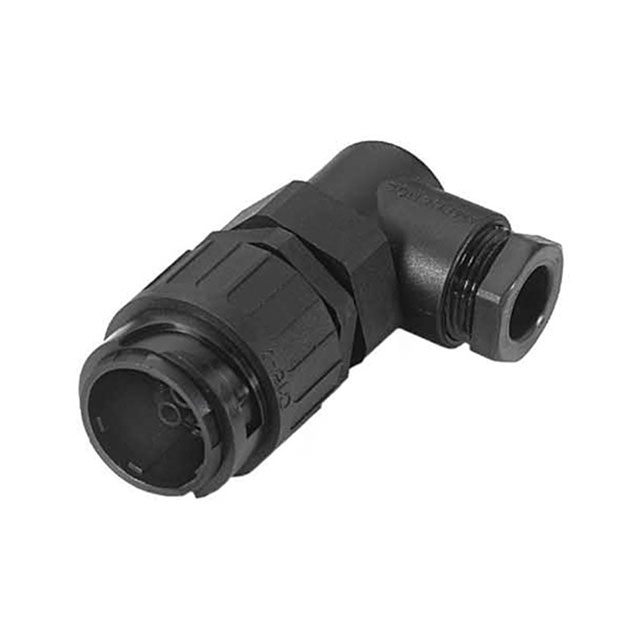

C016 10K008 002 1

Active

Amphenol Tuchel Industrial

CONN PLUG HSNG MALE 9POS R/A

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN PLUG HSNG MALE 9POS R/A

Technical Specifications

Parameters and characteristics for this part

Specification	C016 10K008 002 1

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	1.6 mm
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Coupling Nut, Backshell
Housing Color	Black
Ingress Protection	IP65 - Dust Tight, Water Resistant
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line), Right Angle
Note	Contacts Not Included
Number of Positions	9, 8
Number of Positions [custom]	PE
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Material	Polyamide (PA66), Nylon 6/6
Shell Size - Insert	1
Shielding	Unshielded
Type	For Male Pins

Part	Orientation	Type	Material Flammability Rating	Note	Fastening Type	Connector Type	Shell Material	Number of Positions	Number of Positions [custom]	Features	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Contact Type	Shielding	Housing Color	Shell Size - Insert	Contact Shape	Contact Size
Amphenol Tuchel Industrial C016 10K008 002 1	N	For Male Pins	UL94 V-0	Contacts Not Included	Bayonet Lock	Plug Housing	Polyamide (PA66) Nylon 6/6	8 9	PE	Backshell Coupling Nut	IP65 - Dust Tight Water Resistant	125 °C	-40 °C	Free Hanging (In-Line) Right Angle	Crimp	Unshielded	Black	1	Circular	1.6 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

9 (8 + PE) Position Circular Connector Plug Housing Free Hanging (In-Line), Right Angle Backshell, Coupling Nut
