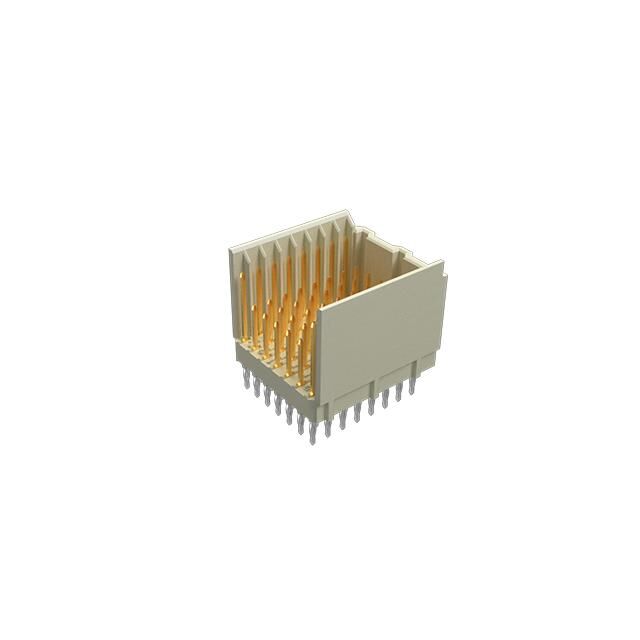

HM2P78PDS341N9LF

Active

Amphenol ICC (FCI)

CONN HARD METRIC

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN HARD METRIC

Technical Specifications

Parameters and characteristics for this part

Specification	HM2P78PDS341N9LF

Connector Style	B 8
Connector Type	Header, Male Pins
Contact Finish	Gold
Current Rating (Amps)	1.5 A
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions [custom]	16
Number of Positions [custom]	40
Number of Positions [custom]	56
Number of Positions Loaded	All
Number of Rows	2, 5
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm
Termination	Press-Fit
Voltage Rating	750 Vrms

Part	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Current Rating (Amps)	Number of Positions Loaded	Mounting Type	Number of Rows	Contact Finish	Connector Type	Pitch [x]	Pitch [x]	Voltage Rating	Connector Style	Termination	Operating Temperature [Min]	Operating Temperature [Max]
Amphenol ICC (FCI) HM2P78PDS341N9LF	16	40	56	1.5 A	All	Board Edge Right Angle Through Hole	2 5	Gold	Header Male Pins	0.079 in	2 mm	750 Vrms	B 8	Press-Fit	-55 °C	125 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	864	$ 3.95

General part information

56 (40 + 16 Ground) Position Header, Male Pins Connector 0.079" (2.00mm) Board Edge, Through Hole, Right Angle
