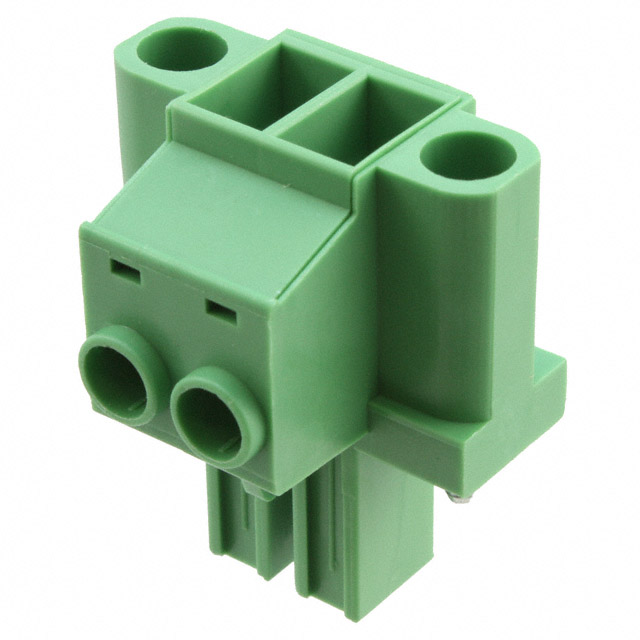

20020517-M021B01LF

Active

Amphenol Anytek

TERM BLOCK PLUG 2POS STR 7.62MM

Search across all available documentation for this part.

Active

Amphenol Anytek

TERM BLOCK PLUG 2POS STR 7.62MM

Technical Specifications

Parameters and characteristics for this part

Specification	20020517-M021B01LF

Color	Green
Contact Material	Copper Alloy
Contact Mating Finish	Tin
Current - UL	32 A
Features	Retention Latches (Non-Wire Side), Mating Flange
Housing Material	Thermoplastic Resin
Insulation Height [z]	0.902 "
Insulation Height [z]	22.9 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	2
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.3 in
Pitch [x]	7.62 mm
Positions Per Level	2
Screw Size	M3.5
Termination Style	Screw - Rising Cage Clamp
Torque - Screw	0.79 Nm
Torque - Screw	7 Lb-In
Type	Blade Sockets, Plug
Voltage - UL	300 V
Wire Gauge or Range - AWG [Max]	24 AWG
Wire Gauge or Range - AWG [Min]	8 AWG
Wire Gauge or Range - mm² [Max]	10 mm²
Wire Gauge or Range - mm² [Min]	2.5 mm²
Wire Strip Length [Max]	7 mm
Wire Strip Length [Min]	6 mm

Part	Wire Strip Length [Max]	Wire Strip Length [Min]	Contact Material	Positions Per Level	Termination Style	Contact Mating Finish	Voltage - UL	Housing Material	Type	Pitch [x]	Pitch [x]	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Mounting Type	Current - UL	Torque - Screw	Torque - Screw	Features	Material Flammability Rating	Screw Size	Number of Levels	Insulation Height [z]	Insulation Height [z]	Color	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions
Amphenol Anytek 20020517-M021B01LF	7 mm	6 mm	Copper Alloy	2	Screw - Rising Cage Clamp	Tin	300 V	Thermoplastic Resin	Blade Sockets Plug	0.3 in	7.62 mm	10 mm²	2.5 mm²	Free Hanging (In-Line)	32 A	0.79 Nm	7 Lb-In	Mating Flange Retention Latches (Non-Wire Side)	UL94 V-0	M3.5	1	0.902 "	22.9 mm	Green	24 AWG	8 AWG	-40 °C	115 °C	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

2 Position Terminal Block Plug, Blade Sockets 0.300" (7.62mm) 180° Free Hanging (In-Line)
