R6712-00

Active

Harwin Inc.

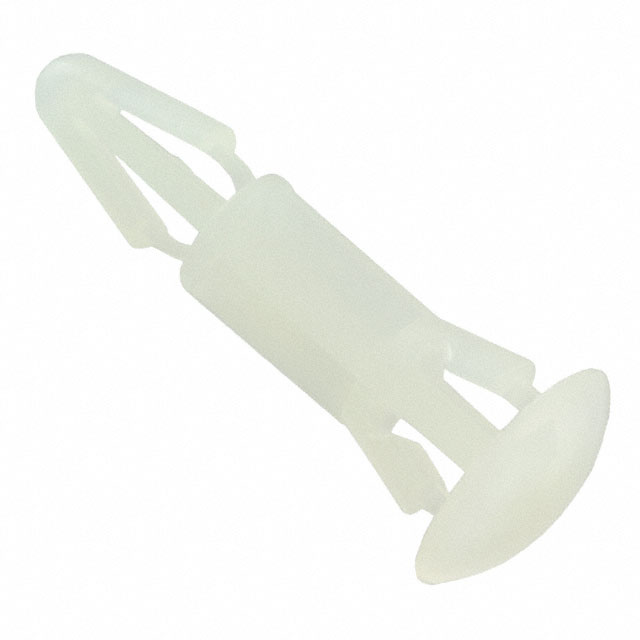

12.00MM SELF-LOCKING PLASTIC SPACER/PILLAR ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

12.00MM SELF-LOCKING PLASTIC SPACER/PILLAR ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	R6712-00

Between Board Height	0.472 in
Between Board Height	12 mm
Features	Locking, Reverse Mounting
Holding Type	Snap Lock
Length - Overall [x]	24.8 mm
Length - Overall [x]	0.976 in
Material	Nylon
Mounting Hole Diameter [diameter]	0.217 in
Mounting Hole Diameter [diameter]	5.5 mm
Mounting Type	Snap Lock
Support Hole Diameter [diameter]	0.157 "
Support Hole Diameter [diameter]	3.99 mm
Support Panel Thickness [Max]	0.071 in
Support Panel Thickness [Max]	1.8 mm
Support Panel Thickness [Min]	0.02 in
Support Panel Thickness [Min]	0.5 mm

Part	Mounting Type	Material	Holding Type	Length - Overall [x]	Length - Overall [x]	Support Panel Thickness [Max]	Support Panel Thickness [Min]	Support Panel Thickness [Max]	Support Panel Thickness [Min]	Features	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Between Board Height	Between Board Height	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]
Harwin Inc. R6712-00	Snap Lock	Nylon	Snap Lock	24.8 mm	0.976 in	0.071 in	0.02 in	1.8 mm	0.5 mm	Locking Reverse Mounting	0.157 "	3.99 mm	0.472 in	12 mm	0.217 in	5.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Board Support Snap Lock / Snap Lock Nylon 0.472" (12.00mm)
