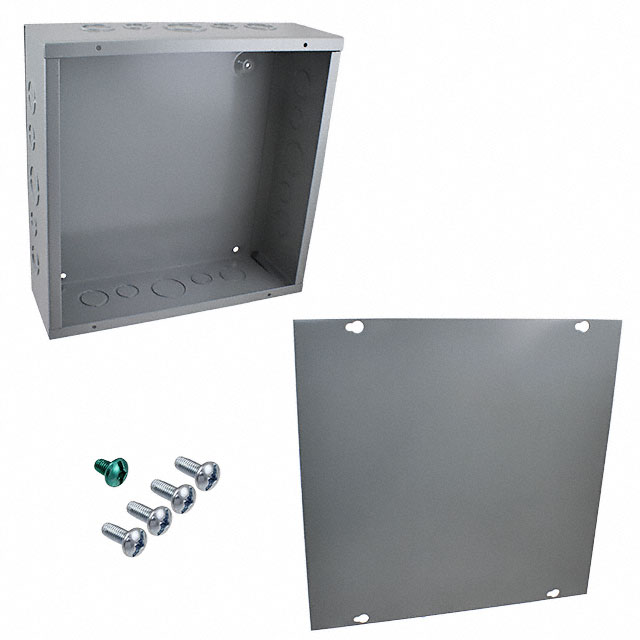

ASE12X12X4

Active

Hoffman Enclosures, Inc.

JUNCTION BOX STEEL 12"L X 12"W

Search across all available documentation for this part.

Active

Hoffman Enclosures, Inc.

JUNCTION BOX STEEL 12"L X 12"W

Technical Specifications

Parameters and characteristics for this part

Part	Design	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Color	Features	Weight	Weight	Ratings	Container Type	Material	Height [z]	Height [z]
Hoffman Enclosures, Inc. ASE12X12X4	Cover Included	305 mm	12.008 in	305 mm	12.008 in	Gray	Knockouts Wall Mount	8.9 lbs	4 kg	50E IP30 NEMA 1 UL-50	Junction Box	Metal Steel	4.016 in	102 mm
Hoffman Enclosures, Inc. ASE12X12X8NK	Cover Included	305 mm	12.008 in	305 mm	12.008 in	Gray		12 lbs	5.4 kg	50E IP30 NEMA 1 UL-50	Junction Box	Metal Steel
Hoffman Enclosures, Inc. ASE12X12X6	Cover Included	305 mm	12.008 in	305 mm	12.008 in	Gray	Knockouts Wall Mount	11 lbs	5 kg	50E IP30 NEMA 1 UL-50	Junction Box	Metal Steel	5.984 in	152 mm
Hoffman Enclosures, Inc. ASE12X12X6NK	Cover Included	305 mm	12.008 in	305 mm	12.008 in	Gray		11 lbs	5 kg	50E IP30 NEMA 1 UL-50	Junction Box	Metal Steel	5.984 in	152 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Junction Box Metal, Steel Gray Cover Included 12.008" L x 12.008" W (305.00mm x 305.00mm) X 4.016" (102.00mm)
