222,AL

Active

Serpac

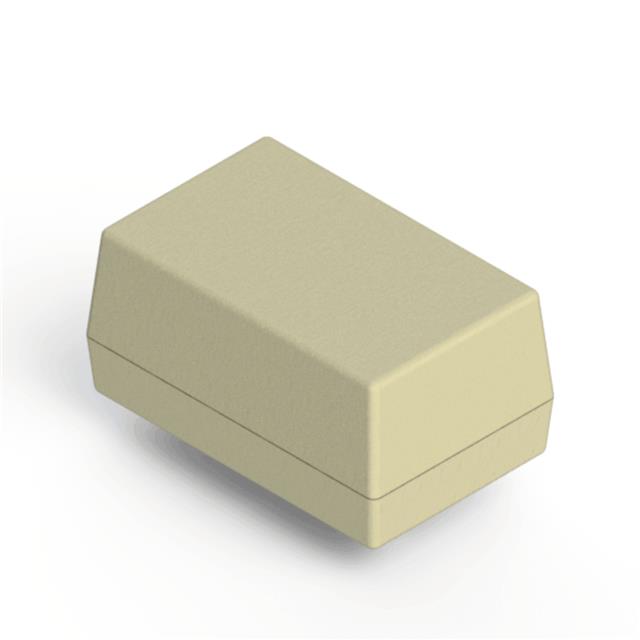

BOX ABS ALMOND 4.1"L X 2.6"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS ALMOND 4.1"L X 2.6"W

Technical Specifications

Parameters and characteristics for this part

Specification	222,AL

Area (L x W)	10.7 in²
Area (L x W)	69 cm²
Color	Almond
Container Type	Box
Design	Split Sides, Hand Held
Features	Battery Compartment, PCB Supports
Features	9 V
Height [z]	50.8 mm
Height [z]	2 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Size / Dimension [x]	104.14 mm
Size / Dimension [x]	4.1 "
Size / Dimension [y]	2.6 "
Size / Dimension [y]	66.04 mm
Thickness	2.54 mm
Thickness	0.1 in
Weight	0.174 lb
Weight	78.93 g

Part	Features	Features	Thickness	Thickness	Height [z]	Height [z]	Ratings	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Color	Material Flammability Rating	Design	Material	Weight	Weight	Container Type	Area (L x W)	Area (L x W)
Serpac 222,AL	Battery Compartment PCB Supports	9 V	2.54 mm	0.1 in	50.8 mm	2 in	IP40 NEMA 1	2.6 "	66.04 mm	104.14 mm	4.1 "	Almond	UL94 HB	Hand Held Split Sides	Plastic ABS	0.174 lb	78.93 g	Box	10.7 in²	69 cm²
Serpac 222,BK	Battery Compartment PCB Supports	9 V	2.54 mm	0.1 in	50.8 mm	2 in	IP40 NEMA 1	2.6 "	66.04 mm	104.14 mm	4.1 "	Black	UL94 HB	Hand Held Split Sides	Plastic ABS	0.174 lb	78.93 g	Box	10.7 in²	69 cm²

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.53

General part information

Box Plastic, ABS Almond Hand Held, Split Sides 4.100" L x 2.600" W (104.14mm x 66.04mm) X 2.000" (50.80mm)

Technical documentation and resources

No documents available
