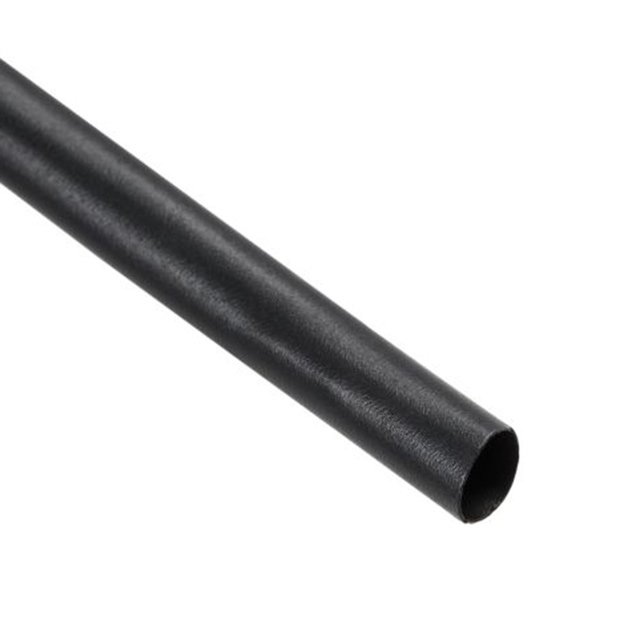

323-50500

Obsolete

HELLERMANNTYTON

HEATSHRINK 4:1 50MMX1M 1=2/PKG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Materials Guide for Bundling & Securing

323-50500

Obsolete

HELLERMANNTYTON

HEATSHRINK 4:1 50MMX1M 1=2/PKG

Deep-Dive with AI

DocumentsDatasheet Materials Guide for Bundling & Securing

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	323-50500

Color	Black
Features	Corrosion Resistant, Moisture Resistant, Solvent Resistant, Acid Resistant, Adhesive Lined
Inner Diameter - Recovered [diameter]	16 mm
Inner Diameter - Recovered [diameter]	0.63 "
Inner Diameter - Supplied [diameter]	50 mm
Inner Diameter - Supplied [diameter]	1.969 in
Length [x]	1 m
Length [x]	3.28 ft
Material	Polyolefin (PO), Irradiated, Halogen Free
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	0.106 "
Recovered Wall Thickness	2.7 mm
Shrink Temperature	120 °C
Shrinkage Ratio	4 to 1
Type	Semi-Flexible, Tubing

323-50 Series

Part	Recovered Wall Thickness	Recovered Wall Thickness	Color	Shrink Temperature	Shrinkage Ratio	Type	Length [x]	Length [x]	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Material	Operating Temperature [Min]	Operating Temperature [Max]	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Features	Inner Diameter - Supplied [diameter]	Inner Diameter - Recovered	Inner Diameter - Recovered
HELLERMANNTYTON 323-50012	0.098 in	2.49 mm	Black	120 °C	4 to 1	Semi-Flexible Tubing	1 m	3.28 ft	0.315 in	8 mm	Polyolefin (PO) Irradiated Halogen Free	-55 °C	110 °C	1.181 "	30 mm	Acid Resistant Adhesive Lined Corrosion Resistant Moisture Resistant Solvent Resistant
HELLERMANNTYTON 323-50500	0.106 "	2.7 mm	Black	120 °C	4 to 1	Semi-Flexible Tubing	1 m	3.28 ft	0.63 "	16 mm	Polyolefin (PO) Irradiated Halogen Free	-55 °C	110 °C	1.969 in	50 mm	Acid Resistant Adhesive Lined Corrosion Resistant Moisture Resistant Solvent Resistant
HELLERMANNTYTON 323-50013	0.098 in	2.49 mm	Black	120 °C	4 to 1	Semi-Flexible Tubing	1 m	3.28 ft	0.472 in	12 mm	Polyolefin (PO) Irradiated Halogen Free	-55 °C	110 °C		1.575 "	Acid Resistant Adhesive Lined Corrosion Resistant Moisture Resistant Solvent Resistant	40.01 mm
HELLERMANNTYTON 323-50400	0.098 in	2.49 mm	Black	120 °C	4 to 1	Semi-Flexible Tubing	1 m	3.28 ft	0.472 in	12 mm	Polyolefin (PO) Irradiated Halogen Free	-55 °C	110 °C		1.575 "	Acid Resistant Adhesive Lined Corrosion Resistant Moisture Resistant Solvent Resistant	40.01 mm
HELLERMANNTYTON 323-50011	0.098 in	2.49 mm	Black	120 °C	4 to 1	Semi-Flexible Tubing	1 m	3.28 ft			Polyolefin (PO) Irradiated Halogen Free	-55 °C	110 °C			Acid Resistant Adhesive Lined Corrosion Resistant Moisture Resistant Solvent Resistant		5.99 mm	0.236 in
HELLERMANNTYTON 323-50017	0.118 in	3 mm	Black	120 °C	4 to 1	Semi-Flexible Tubing	1 m	3.28 ft	1.181 in	30 mm	Polyolefin (PO) Irradiated Halogen Free	-55 °C	110 °C	3.74 "	95 mm	Acid Resistant Adhesive Lined Corrosion Resistant Moisture Resistant Solvent Resistant
HELLERMANNTYTON 323-50300	0.098 in	2.49 mm	Black	120 °C	4 to 1	Semi-Flexible Tubing	1 m	3.28 ft	0.315 in	8 mm	Polyolefin (PO) Irradiated Halogen Free	-55 °C	110 °C	1.181 "	30 mm	Acid Resistant Adhesive Lined Corrosion Resistant Moisture Resistant Solvent Resistant
HELLERMANNTYTON 323-50190	0.098 in	2.49 mm	Black	120 °C	4 to 1	Semi-Flexible Tubing	1 m	3.28 ft			Polyolefin (PO) Irradiated Halogen Free	-55 °C	110 °C			Acid Resistant Adhesive Lined Corrosion Resistant Moisture Resistant Solvent Resistant		5.99 mm	0.236 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

LCSC	Piece	1	$ 39.80
